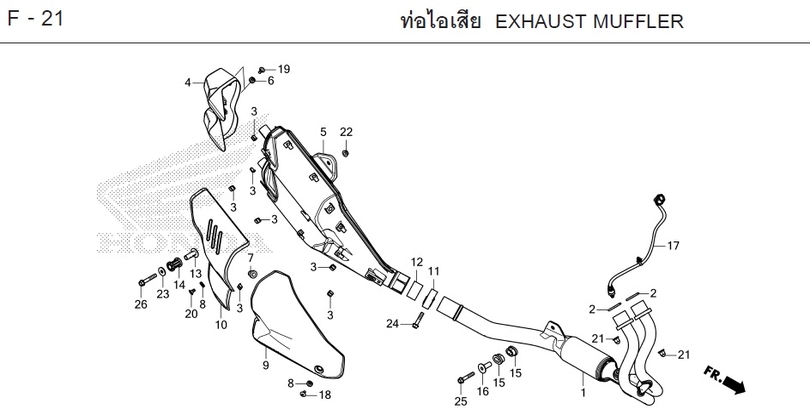

CBR250RR 2023 · F-21 EXHAUST MUFFLER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-21
- 1 PART, EXHAUST PIPE 18150-K64-JC0Qty per bike: 1
- 2 GASKET, EXHAUST PIPE 18291-MN5-650Qty per bike: 2
- 3 RUBBER, MUFFLER HEAT GUARD 18293-MCA-A20Qty per bike: 7
- 4 CAP, EXHAUST PIPE END 18306-K64-N00Qty per bike: 1
- 4 CAP, EXHAUST PIPE 18306-K64-NP0Qty per bike: 1
- 5 PART, EXHAUST PIPE 18310-K64-JC0Qty per bike: 1
- 5 PART, EXHAUST PIPE 18310-K64-N00Qty per bike: 1
- 6 RUBBER, DAMPER 18345-K15-920Qty per bike: 2
- 7 RUBBER 18345-K64-N00Qty per bike: 1
- 8 RUBBER, EXHAUST HEAT GUARD 18345-MBT-610Qty per bike: 2
- 9 COVER, MUFFLER 18355-K64-N00Qty per bike: 1
- 10 COVER, MUFFLER B 18356-K64-N00Qty per bike: 1
- 11 BAND, MUFFLER 18376-MG7-000Qty per bike: 1
- 12 GASKET, MUFFLER 18392-K64-N01Qty per bike: 1
- 13 COLLAR, MUFFLER 18420-MGZ-J00Qty per bike: 1
- 14 RUBBER, MUFFLER MOUNTING LUG 18421-MGZ-J00Qty per bike: 1
- 15 RUBBER, EXHAUST PIPE 18422-MGZ-J00Qty per bike: 2
- 16 COLLAR, EXHAUST PIPE 18423-MGZ-J00Qty per bike: 1
- 17 SENSOR, OXYGEN 36532-K64-NA1Qty per bike: 1
- 17 OXYGEN SENSOR SET 36532-K64-NP1Qty per bike: 1
- 18 SCREW, 6x12 90113-KYJ-710Qty per bike: 1
- 19 SCREW, 6x14 90118-K64-N00Qty per bike: 2
- 20 SCREW, 6x12 90119-K64-N00Qty per bike: 1
- 21 NUT, HEX CAP, 8 mm 90304-KPH-700Qty per bike: 4
- 22 NUT, FLANGE, 8 mm 94050-08000Qty per bike: 1
- 23 WASHER 8 mm 94103-08800Qty per bike: 1
- 24 BOLT, FLANGE, 8x38 95701-08038-02Qty per bike: 1
- 25 BOLT, FLANGE, 8x45 95701-08045-00Qty per bike: 1
- 26 BOLT, FLANGE, 8x50 95701-08050-00Qty per bike: 1
This catalogue is shared by: CBR250RR 2023. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
