CBR250RR 2023 · F-9-1 9-1 FRONT FORK(CBR250S3AP)

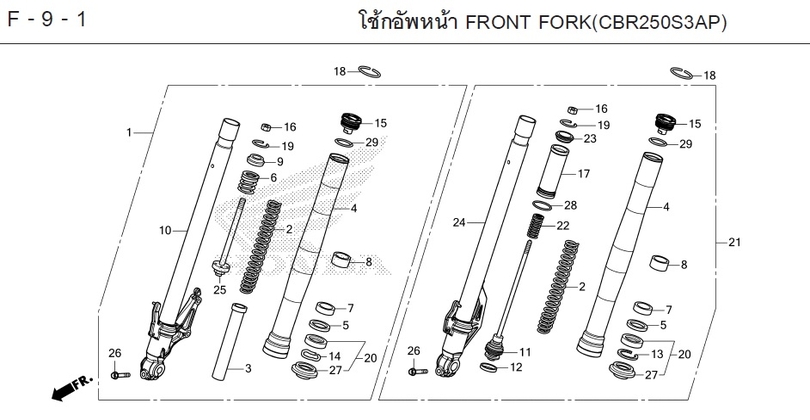

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-9-1
- 1 FRONT SHOCK ABSORBER SET, RIGHT 51400-K64-NN1Qty per bike: 1
- 2 SPRING, FRONT FORK 51401-K64-NP1Qty per bike: 2
- 3 COLLAR 51402-K64-NP1Qty per bike: 1
- 4 TUBE, FRONT FORK (OUTER) 51410-K64-NA1Qty per bike: 2
- 4 PIPE 51410-K64-NP1Qty per bike: 2
- 5 WASHER, SEAL 51412-461-003Qty per bike: 2
- 6 SPRING, SHOCK ABSORBER 51412-K64-NP1Qty per bike: 1
- 7 BUSH, FRONT FORK GUIDE 51414-K31-901Qty per bike: 2
- 8 BUSH, FRONT FORK SHAFT END SLIDE 51415-KSE-A71Qty per bike: 2
- 9 PLATE, LOCK 51419-K45-NL1Qty per bike: 1
- 10 PIPE SET, RIGHT 51425-K64-NN1Qty per bike: 1
- 11 ROD, SHOCK ABSORBER PISTON 51426-K64-NP1Qty per bike: 1
- 12 RING, FORK PISTON 51437-K45-NL1Qty per bike: 1
- 13 WASHER, INNER LOCK 50 mm 51447-461-003Qty per bike: 1
- 14 RING, OIL SEAL LOCK 51447-KR6-003Qty per bike: 1
- 15 BOLT, FRONT FORK CAP 51450-K45-NL1Qty per bike: 2
- 16 NUT, HEX 51451-MKY-D51Qty per bike: 2
- 17 TUBE, SHOCK ABSORBER 51455-K15-711Qty per bike: 1
- 18 WASHER, LOCK 51455-K64-N00Qty per bike: 2
- 19 WASHER, LOCK 51456-K45-NL1Qty per bike: 2
- 20 SEAL SET, FRONT FORK TUBE 51490-KWL-003Qty per bike: 2
- 21 SHOCK ABSORBER, LEFT FRONT 51500-K64-NN1Qty per bike: 1
- 22 SPRING 51512-K64-NP1Qty per bike: 1
- 23 PLATE, LEFT LOCK 51519-K45-NL1Qty per bike: 1
- 24 SHAFT, LEFT FRONT FORK 51525-K64-NN1Qty per bike: 1
- 25 INNER SHOCK ABSORBER SHAFT SET 51526-K64-NP1Qty per bike: 1
- 26 BOLT, FLANGE, 8x45 90109-MR7-000Qty per bike: 2
- 27 SEAL, DUST 91254-KAZ-003Qty per bike: 2
- 28 O-RING, 27.7x2.4 91356-K45-NL1Qty per bike: 1
- 29 O-RING, 37.2x2.4 91356-MW0-003Qty per bike: 2
This catalogue is shared by: CBR250RR 2023. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
