CRF300RALLY 2021 · F-16-1 16-1 SHROUD (CRF300LR)

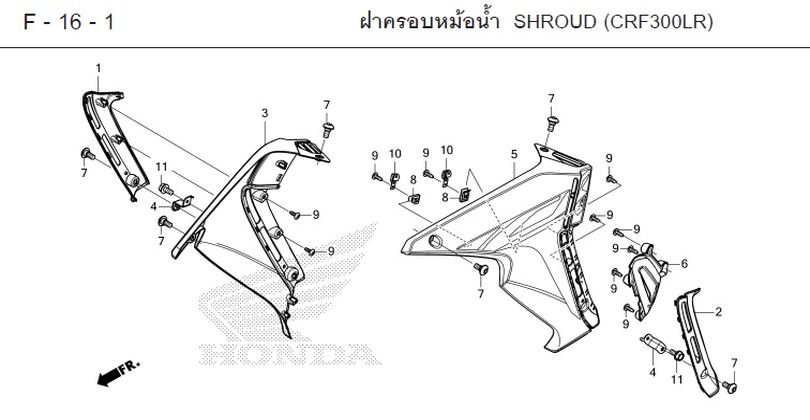

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-16-1
- 1 COVER, RIGHT REAR RADIATOR 19035-KZZ-J00ZAQty per bike: 1
- 2 COVER, LEFT REAR RESERVE TANK 19045-KZZ-J00ZAQty per bike: 1
- 3 RADIATOR COVER SET, RIGHT FRONT (WL) 19070-K1T-E10ZAQty per bike: 1
- 4 STAY, RESERVE TANK COVER 19071-K1T-E10Qty per bike: 2
- 5 RESERVE TANK COVER SET, LEFT FRONT (WL) 19090-K1T-E10ZAQty per bike: 1
- 6 COVER, REAR RESERVE TANK 19165-K1T-E10Qty per bike: 1
- 7 SCREW, 6x14 90133-KPP-T00Qty per bike: 6
- 8 NUT, SPRING, 4 mm 90302-KWW-A00Qty per bike: 2
- 9 SCREW, TAPPING, 4x12 93903-24380Qty per bike: 10
- 10 CLIP, 4x70 94591-47000Qty per bike: 2
- 11 BOLT, FLANGE, 6x12 95701-06012-07Qty per bike: 2
