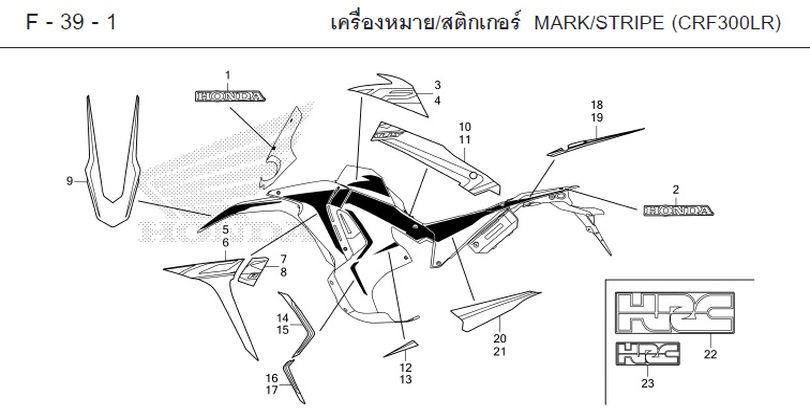

CRF300RALLY 2021 · F-39-1 39-1 MARK/STRIPE (CRF300LR)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-39-1
- 1 EMBLEM, HONDA (70 mm FRONT) 86102-KZZ-900ZCQty per bike: 1
- 2 MARK, HONDA 70 mm REAR 86102-KZZ-L30ZAQty per bike: 1
- 3 STICKER, RIGHT FUEL TANK (RED-BLACK) 86171-K1T-E10ZAQty per bike: 1
- 4 STICKER, LEFT FUEL TANK 86172-K1T-E10ZAQty per bike: 1
- 5 STICKER, RIGHT FRONT COVER 86191-K1T-E10ZAQty per bike: 1
- 6 STICKER, LEFT FRONT RESERVE TANK COVER 86192-K1T-E10ZAQty per bike: 1
- 7 STICKER, RIGHT FRONT COVER 86193-K1T-E10ZAQty per bike: 1
- 8 STICKER, LEFT FRONT RESERVE TANK COVER 86194-K1T-E10ZAQty per bike: 1
- 9 STICKER, FRONT FENDER (RED/BLACK) 86611-K1T-E10ZAQty per bike: 1
- 10 STICKER, RIGHT CENTER COVER 86641-K1T-E10ZAQty per bike: 1
- 11 STICKER, LEFT CENTER COVER 86642-K1T-E10ZAQty per bike: 1
- 12 STICKER, RIGHT COVER 86643-KZZ-U00ZBQty per bike: 1
- 13 STICKER, LEFT COVER 86644-KZZ-U00ZBQty per bike: 1
- 14 STICKER, RIGHT CENTER FAIRING C 86645-KZZ-J00ZAQty per bike: 1
- 15 STICKER, LEFT CENTER FAIRING C 86646-KZZ-J00ZAQty per bike: 1
- 16 STICKER, RIGHT CENTER FAIRING D 86647-KZZ-J00ZAQty per bike: 1
- 17 STICKER, LEFT CENTER FAIRING D 86648-KZZ-J00ZAQty per bike: 1
- 18 STRIPE, RIGHT REAR FENDER 86803-K1T-E10ZAQty per bike: 1
- 19 STICKER, LEFT REAR FENDER (RED-BLACK) 86804-K1T-E10ZAQty per bike: 1
- 20 STRIPE, RIGHT BODY SIDE COVER 86831-K1T-E10ZAQty per bike: 1
- 21 STRIPE, LEFT BODY SIDE COVER 86832-K1T-E10ZAQty per bike: 1
- 22 MARK, HRC (120 mm) 86861-KZZ-J00Qty per bike: 2
- 23 MARK, HRC (65 mm) 86862-KZZ-J00Qty per bike: 2
