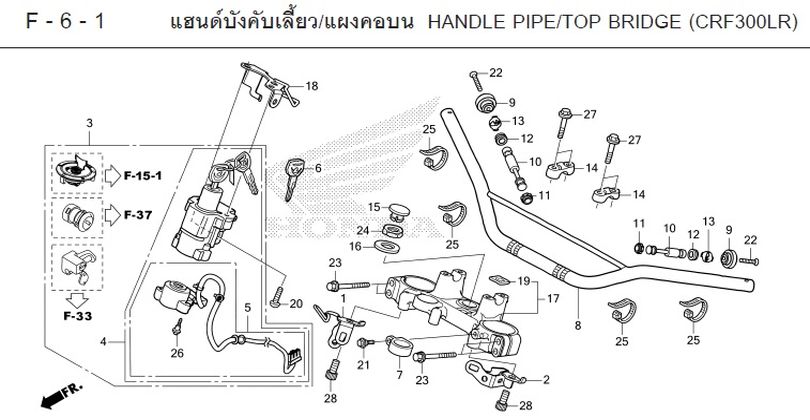

CRF300RALLY 2021 · F-6-1 6-1 HANDLE PIPE/TOP BRIDGE (CRF300LR)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-6-1
- 1 PLATE, THROTTLE CABLE (A) 17915-KZZ-J00Qty per bike: 1
- 2 PLATE, WIRE LOCK CLIP MOUNTING 22875-KZZ-J00Qty per bike: 1
- 3 KEY SET COMP 35010-K1T-E10Qty per bike: 1
- 4 IGNITION SWITCH & STEERING LOCK SET 35100-K1T-E11Qty per bike: 1
- 5 CONTACT BASE, IGNITION SWITCH SET 35101-K1T-E11Qty per bike: 1
- 6 KEY (TYPE 1) 35121-MAS-G01Qty per bike: 1
- 7 HOLDER, FRONT BRAKE HOSE 45468-KZZ-J80Qty per bike: 1
- 8 HANDLEBAR 53100-K1T-E10Qty per bike: 1
- 9 WEIGHT, HANDLEBAR END 53104-MJE-D40Qty per bike: 2
- 10 WEIGHT B, INNER 53105-K1T-E10Qty per bike: 2
- 11 RUBBER, WEIGHT MOUNTING A 53106-KR3-770Qty per bike: 2
- 12 RUBBER, WEIGHT MOUNTING B 53107-MY1-000Qty per bike: 2
- 13 WASHER, WEIGHT LOCK 53108-KR3-770Qty per bike: 2
- 14 HOLDER, UPPER HANDLEBAR 53131-KZZ-A20Qty per bike: 2
- 15 CAP, STEERING STEM 53208-KCH-900Qty per bike: 1
- 16 WASHER, UPPER STEERING PANEL 53215-GF8-000Qty per bike: 1
- 17 UPPER STEERING PANEL SET (RED/BLACK) 53300-KZZ-J00ZCQty per bike: 1
- 18 HOLDER, CLUTCH CABLE 61325-K1T-E10Qty per bike: 1
- 19 MARK, WING 86150-KPG-901Qty per bike: 1
- 20 BOLT, ONE-WAY, 8 mm 90107-MBG-000Qty per bike: 2
- 21 BOLT, FLANGE, 6 mm 90113-KZZ-900Qty per bike: 1
- 22 SCREW, 6x40 90122-MKN-D50Qty per bike: 2
- 23 BOLT, FLANGE, 8x45 90155-KZZ-J00Qty per bike: 4
- 24 NUT, LOCK, UPPER STEERING PANEL 90304-425-000Qty per bike: 1
- 25 BAND, WIRE 90650-KW3-000Qty per bike: 4
- 26 SCREW, TAPPING, 3x16 91059-KY2-711Qty per bike: 3
- 27 BOLT, FLANGE, 8x35 96300-08035-00Qty per bike: 4
- 28 BOLT, 8x16 96600-08016-07Qty per bike: 2
This catalogue is shared by: CRF300L 2021, CRF300RALLY 2021. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
