CRF300RALLY 2023 · E-11-1 11-1 STARTER MOTOR (CRF300LDP/LRP)

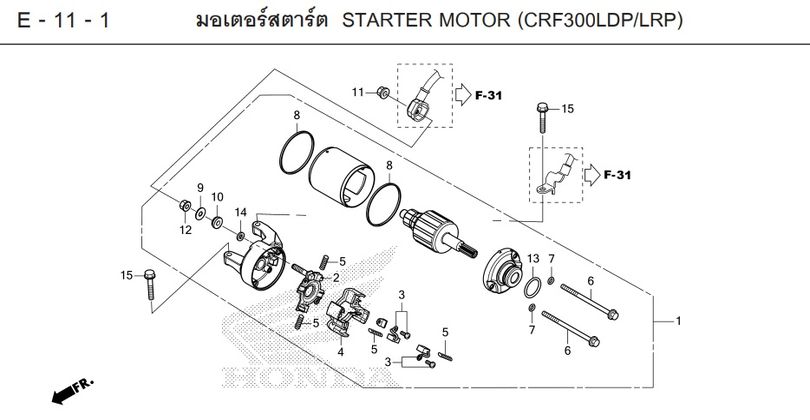

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-11-1
- 1 STARTER MOTOR SET (LUCAS) 31200-K0A-DB1Qty per bike: 1
- 2 BRUSH SET A (+) 31201-K0Z-901Qty per bike: 1
- 3 BRUSH SET A (-) 31202-K0Z-901Qty per bike: 2
- 4 HOLDER, BRUSH 31203-K0Z-901Qty per bike: 1
- 5 SPRING, BRUSH 31204-K0Z-901Qty per bike: 4
- 6 BOLT 31205-K0Z-901Qty per bike: 2
- 7 O-RING 31206-K0Z-901Qty per bike: 2
- 8 SEAL, RING 31207-K0Z-901Qty per bike: 2
- 9 WASHER 31210-K0Z-901Qty per bike: 1
- 10 INSULATOR, OUTER 32112-K0Z-901Qty per bike: 1
- 11 NUT, WASHER, 6 mm 90071-KTE-D00Qty per bike: 1
- 12 NUT, FLANGE, 10 mm 90201-K0Z-901Qty per bike: 1
- 13 O-RING 91309-K0Z-901Qty per bike: 1
- 14 RING, SEALING 91320-K0Z-901Qty per bike: 1
- 15 BOLT, FLANGE, 6x25 95701-06025-00Qty per bike: 2
