CRF300RALLY 2023 · F-15-1 15-1 FUEL TANK (CRF300LR)

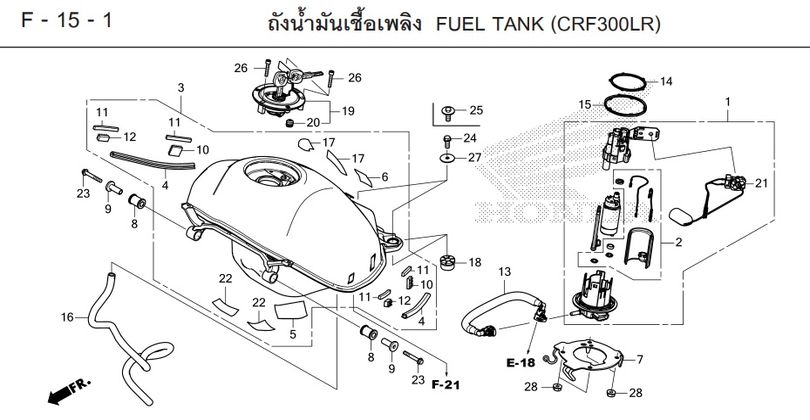

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-15-1
- 1 FUEL PUMP SET 16700-K1T-E11Qty per bike: 1
- 2 FUEL FILTER SET 16707-K45-N01Qty per bike: 1
- 3 FUEL TANK SET (WL) (RED-BLACK) 17500-K1T-E10ZAQty per bike: 1
- 4 RUBBER, FUEL TANK A 17516-KZZ-900Qty per bike: 2
- 5 FILM, FUEL TANK PROTECTION 17519-K1B-T00Qty per bike: 1
- 6 FILM, FUEL TANK PROTECTION 17519-K35-V00Qty per bike: 1
- 7 PLATE, FUEL PUMP MOUNTING 17527-K1T-E10Qty per bike: 1
- 8 RUBBER, FRONT FUEL TANK MOUNTING POINT 17534-MFJ-D00Qty per bike: 2
- 9 COLLAR 17538-KZZ-900Qty per bike: 2
- 10 HOLDER, DOUBLE-SIDED, 20x20 17540-MJW-J80Qty per bike: 2
- 11 RUBBER 17544-K1T-E10Qty per bike: 4
- 12 HOLDER, DOUBLE-SIDED, 10x20 17545-K1T-E10Qty per bike: 2
- 13 PIPE SET, FUEL FEED 17570-K1T-E11Qty per bike: 1
- 14 GASKET, FUEL PUMP 17572-GHB-613Qty per bike: 1
- 15 SEAL, DUST 17573-KPN-A71Qty per bike: 1
- 16 TUBE, AIR CLEANER CASE DRAIN 17575-K1T-E10Qty per bike: 1
- 17 FILM, FUEL TANK PROTECTION 17583-K1T-E10Qty per bike: 2
- 18 RUBBER, FUEL TANK MOUNTING POINT 17613-K1T-E10Qty per bike: 2
- 19 FUEL FILLER CAP SET 17620-KZZ-J02Qty per bike: 1
- 19 FUEL FILLER CAP SET 17620-KZZ-J03Qty per bike: 1
- 20 SEAL, FUEL FILLER CAP BREATHER 17621-MGP-D62Qty per bike: 1
- 21 FUEL LEVEL SENSOR SET (FLOAT) 37800-K1T-E11Qty per bike: 1
- 22 FILM, PROTECTIVE 84114-MFP-C80Qty per bike: 2
- 23 BOLT, FLANGE, 6x40 90004-GHB-710Qty per bike: 2
- 24 BOLT, FLANGE, 6x14 90013-GHB-620Qty per bike: 2
- 25 BOLT, WASHER, 6x14 90107-K1T-EB0Qty per bike: 2
- 26 BOLT, 4x25 90120-MJE-D00Qty per bike: 3
- 27 WASHER, 6 mm 90521-K1T-E10Qty per bike: 2
- 28 NUT, FLANGE, 6 mm 94050-06080Qty per bike: 4
