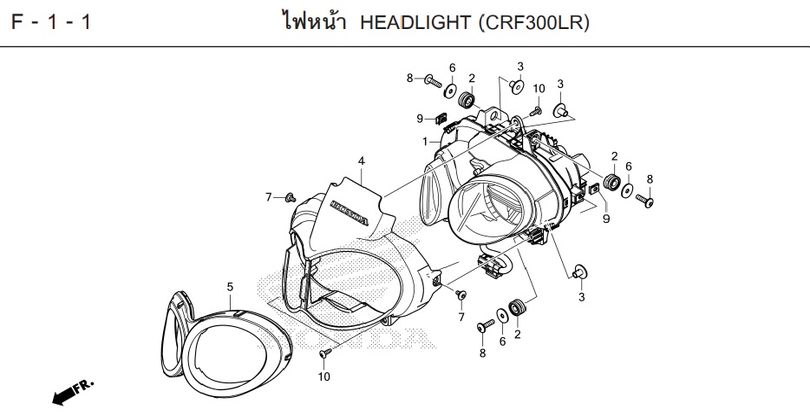

CRF300RALLY 2023 · F-1-1 I-I HEADLIGHT (CRF300LR)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-1-1
- 1 HEADLIGHT UNIT 33100-KZZ-J01Qty per bike: 1
- 2 RUBBER, HEADLIGHT 61103-MKN-D50Qty per bike: 4
- 3 COLLAR 61104-KZZ-900Qty per bike: 4
- 4 HEADLIGHT COVER SET (WL) (RED/BLACK) 61140-KZZ-J00ZAQty per bike: 1
- 5 RING, HEADLIGHT COVER 61146-KZZ-J00Qty per bike: 1
- 6 WASHER 77302-KW7-900Qty per bike: 4
- 7 SCREW, SPECIAL, 5x11 90114-KPH-700Qty per bike: 2
- 8 BOLT, SPECIAL, 6x24 90185-KZZ-J00Qty per bike: 4
- 9 NUT, CLIP, 5 mm 90677-KAN-961Qty per bike: 2
- 10 SCREW, TAPPING, 5x16 (PO) 93913-25480Qty per bike: 3
This catalogue is shared by: CRF300L 2023, CRF300RALLY 2023. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
