MSX GROM 2024 · E-5 RIGHT CRANKCASE COVER

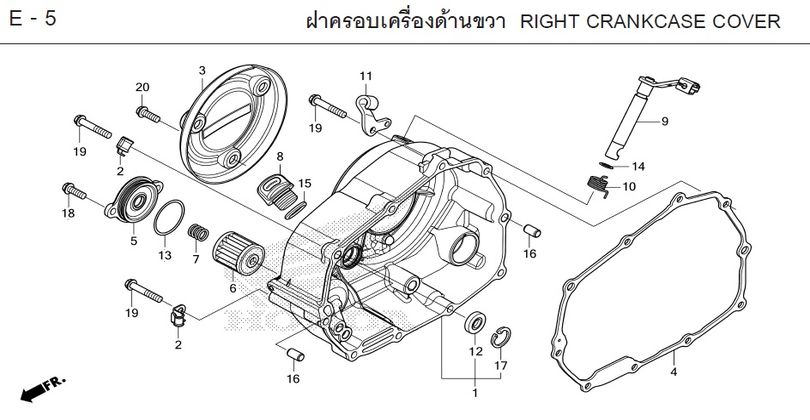

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-5
- 1 COVER, RIGHT CRANKCASE 11330-K26-G00Qty per bike: 1
- 2 HOLDER, OIL TEMPERATURE SENSOR WIRE 11346-KTR-940Qty per bike: 2
- 3 GUARD, RIGHT CRANKCASE COVER HEAT 11370-K26-G00Qty per bike: 1
- 4 GASKET, RIGHT CRANKCASE COVER 11394-K1M-T02Qty per bike: 1
- 5 COVER, OIL FILTER 15411-K26-G00Qty per bike: 1
- 6 OIL FILTER ELEMENT SET 15412-MGS-D21Qty per bike: 1
- 7 SPRING, OIL STRAINER 15414-MEB-670Qty per bike: 1
- 8 CAP, OIL FILLER 15611-K26-G00Qty per bike: 1
- 9 ARM, CLUTCH LIFTER 22810-K26-G00Qty per bike: 1
- 10 SPRING, CLUTCH LIFTER ARM 22815-166-000Qty per bike: 1
- 11 STAY, CLUTCH CABLE 22821-K26-G00Qty per bike: 1
- 12 OIL SEAL 12X20X5 91205-KF0-003Qty per bike: 1
- 13 O-RING, 39.8x2.2 91302-K0G-911Qty per bike: 1
- 14 O-RING, 8.8x1.9 91305-K26-900Qty per bike: 1
- 15 O-RING, 18x3 91307-KRM-840Qty per bike: 1
- 16 PIN, DOWEL, 8x14 94301-08140Qty per bike: 2
- 17 CLIP, INNER LOCK, 22 mm 94520-22000Qty per bike: 1
- 18 BOLT, FLANGE, 6x18 96001-06018-00Qty per bike: 2
- 19 BOLT, FLANGE, 6x35 96001-06035-00Qty per bike: 10
- 20 BOLT, FLANGE, 6x18 (NSHF) 90017-GHB-640Qty per bike: 3
