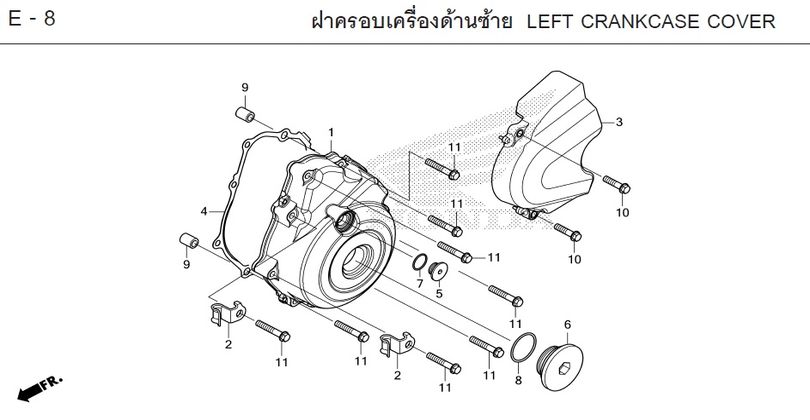

MSX GROM 2024 · E-8 LEFT CRANKCASE COVER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-8
- 2 HOLDER, OIL TEMPERATURE SENSOR WIRE 11346-KTR-940Qty per bike: 2
- 3 COVER, LEFT ENGINE REAR 11360-K26-G00Qty per bike: 1
- 4 GASKET, LEFT CRANKCASE COVER 11395-K1M-T02Qty per bike: 1
- 5 CAP, 14 mm 90084-KWA-930Qty per bike: 1
- 6 CAP, 30 mm 90087-KTR-A00Qty per bike: 1
- 7 O-RING, 13.8x2.5 91308-KVR-C00Qty per bike: 1
- 9 PIN, DOWEL, 8x14 94301-08140Qty per bike: 2
- 10 BOLT, FLANGE, 6x25 96001-06025-00Qty per bike: 2
- 11 BOLT, FLANGE, 6x35 96001-06035-00Qty per bike: 8
