PCX160 2023 · E-12 DRIVEN FACE

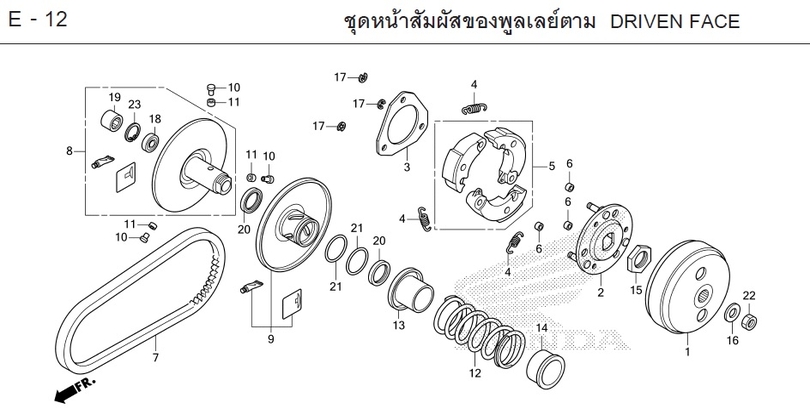

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.

All parts on page E-12

1 CLUTCH OUTER 22100-K0W-NA0Qty per bike: 1
1 CLUTCH OUTER 22100-K1N-V00Qty per bike: 1
2 PLATE, DRIVE 22350-GFM-900Qty per bike: 1
2 PLATE, DRIVE 22350-K97-T01Qty per bike: 1
2 PLATE, DRIVE 22350-KVB-900Qty per bike: 1
3 PLATE, BAFFLE 22361-K29-V81Qty per bike: 1
3 PLATE, BAFFLE 22361-KVB-900Qty per bike: 1
4 SPRING, CLUTCH SHOE 22401-KGG-910Qty per bike: 3
5 CENTRIFUGAL CLUTCH SHOE SET 22535-K1N-V00Qty per bike: 1
6 DAMPER, RUBBER 22804-148-000Qty per bike: 3
7 BELT, DRIVE 23100-K1Z-J11Qty per bike: 1
8 FIXED DRIVEN FACE SET 23205-K0W-NA0Qty per bike: 1
8 DRIVEN PULLEY FIXED FACE SET 23205-K1Z-J10Qty per bike: 1
9 MOVABLE DRIVEN FACE SET 23224-K1Z-J10Qty per bike: 1
10 PIN, GUIDE ROLLER 23225-KSY-900Qty per bike: 3
11 ROLLER, GUIDE 23226-KVB-900Qty per bike: 3
12 SPRING, DRIVEN PULLEY FACE 23233-K1Z-J10Qty per bike: 1
12 SPRING, DRIVEN PULLEY FACE 23233-KZY-902Qty per bike: 1
13 COLLAR, SEAL 23237-K40-F00Qty per bike: 1
14 COLLAR, SPRING 23238-KZR-600Qty per bike: 1
15 NUT, SPECIAL, 28 mm 90202-KN7-670Qty per bike: 1
16 WASHER, 12.2x29x2.5 90441-GY6-940Qty per bike: 1
17 CLIP, LOCK, 7 mm 90605-166-720Qty per bike: 3
18 BEARING, RADIAL BALL, 6902U (NTN) 91002-GA7-701Qty per bike: 1
18 BEARING, RADIAL BALL, 6902U (F.C.C.) 91004-GGC-G01Qty per bike: 1
18 BEARING, RADIAL BALL, 6902U (F.C.C.) 91009-K93-T01Qty per bike: 1
18 BEARING, RADIAL BALL, 6902U (NSK) 91009-KVY-961Qty per bike: 1
19 BEARING, NEEDLE ROLLER, 20x29x18 (NTN) 91001-KCW-003Qty per bike: 1
19 BEARING, NEEDLE ROLLER, 22x29x18 91002-KFG-003Qty per bike: 1
19 BEARING, NEEDLE ROLLER, 20x29x18 (F.C.C.) 91109-K2S-N01Qty per bike: 1
19 BEARING, NEEDLE ROLLER, 20x29x18 (SCHAEFFLER) 91109-KVY-902Qty per bike: 1
20 OIL SEAL, 34x41x4 91211-K97-T01Qty per bike: 2
20 OIL SEAL, 34x41x4 91211-KN7-671Qty per bike: 2
21 O-RING, 38.8x1.9 91384-KVB-900Qty per bike: 2
22 NUT, HEX, 12 mm 94030-12200Qty per bike: 1
23 CLIP, INNER LOCK, 28 mm 94520-28000Qty per bike: 1

This catalogue is shared by: PCX160 2023. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
