PCX160 2023 · E-15 LEFT CRANKCASE

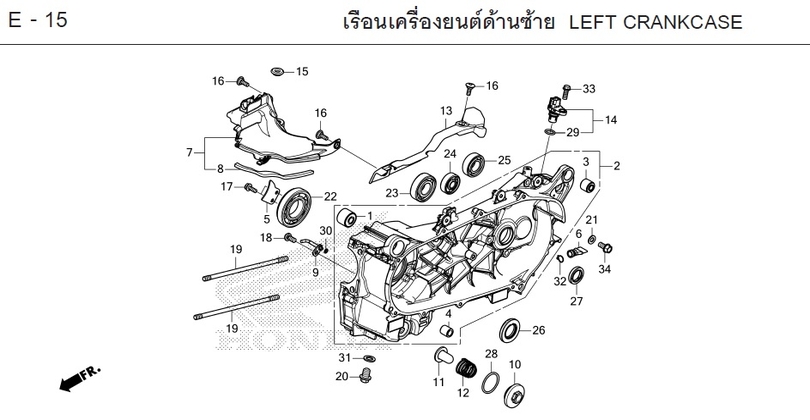

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-15
- 1 BUSH, ENGINE HANGER (HOKUSHIN) 11103-KVB-901Qty per bike: 1
- 2 CRANKCASE SET, LEFT 11200-K1Z-J10Qty per bike: 1
- 2 CRANKCASE SET, LEFT 11200-K2S-N00Qty per bike: 1
- 3 BUSH, REAR HANGER RUBBER (HOKUSHIN) 11203-KVB-901Qty per bike: 1
- 4 BUSH, MAIN STAND 11205-GBC-300Qty per bike: 1
- 5 PLATE, LEFT CRANKCASE BEARING RETAINER 11208-K40-F00Qty per bike: 1
- 6 TUBE, DRAIN 11343-KVG-900Qty per bike: 1
- 7 COVER SET, UPPER ENGINE 11410-K1N-V00Qty per bike: 1
- 8 SEAL, UPPER CRANKCASE COVER 11412-K1N-V00Qty per bike: 1
- 9 NOZZLE SET, OIL JET 15201-K0R-V00Qty per bike: 1
- 10 CAP, OIL FILTER ELEMENT 15411-K0R-V00Qty per bike: 1
- 11 STRAINER, OIL FILTER 15421-K0R-V00Qty per bike: 1
- 12 SPRING, OIL STRAINER 15426-K0R-V00Qty per bike: 1
- 13 COVER, VEHICLE SPEED SENSOR 32112-K1N-V00Qty per bike: 1
- 14 SENSOR SET, VEHICLE SPEED (PANASONIC) 37700-K0L-D11Qty per bike: 1
- 15 RUBBER, SIDE COVER 83551-376-000Qty per bike: 1
- 16 BOLT, 6x18 90001-KWR-000Qty per bike: 3
- 17 BOLT, FLANGE, 6x16 90003-883-000Qty per bike: 2
- 18 BOLT, SPECIAL, 6x12 90003-K0J-N00Qty per bike: 1
- 19 BOLT, STUD B, 8x213.2 90032-K0R-V00Qty per bike: 2
- 20 BOLT, DRAIN, 12x15 90131-883-000Qty per bike: 1
- 21 WASHER, SEALING, 8 mm 90495-MN5-000Qty per bike: 1
- 22 BEARING, RADIAL BALL, 35X72X15 91002-K1N-V01Qty per bike: 1
- 23 BEARING, RADIAL BALL, 6204 (NTN) 91003-KZR-601Qty per bike: 1
- 23 BEARING, RADIAL BALL, 62/22 91004-K1Z-J11Qty per bike: 1
- 24 BEARING, RADIAL BALL, 6301 (FAG) 91005-K2S-N01Qty per bike: 1
- 24 BEARING, RADIAL BALL, 6301 91005-KZR-601Qty per bike: 1
- 24 BEARING, RADIAL BALL, 6301 91005-KZR-602Qty per bike: 1
- 25 BEARING, RADIAL BALL, 6004 (NTN) 91016-K1Z-J11Qty per bike: 1
- 26 OIL SEAL, 26x45x6 91202-K40-F01Qty per bike: 1
- 26 OIL SEAL, 26x45x6 (NOK) 91202-K97-T01Qty per bike: 1
- 27 OIL SEAL, 22x32x6 91203-K1Z-J11Qty per bike: 1
- 27 OIL SEAL, 20x32x6 91203-K35-J01Qty per bike: 1
- 27 OIL SEAL, 20x32x6 (NOK) 91203-K50-T01Qty per bike: 1
- 28 O-RING, 31.2X2.4 (ARAI) 91303-K0R-V01Qty per bike: 1
- 29 O-RING, 11.4x2.1 91304-K0L-D01Qty per bike: 1
- 30 O-RING, 3.8x1.4 91305-K0J-N00Qty per bike: 1
- 31 WASHER, DRAIN BOLT, 12 mm 94109-12000Qty per bike: 1
- 32 CLIP, TUBE (C12) 95002-80000Qty per bike: 1
- 33 BOLT, FLANGE, 6x16 95701-06016-00Qty per bike: 1
- 34 BOLT, FLANGE, 8x16 95701-08016-00Qty per bike: 1
