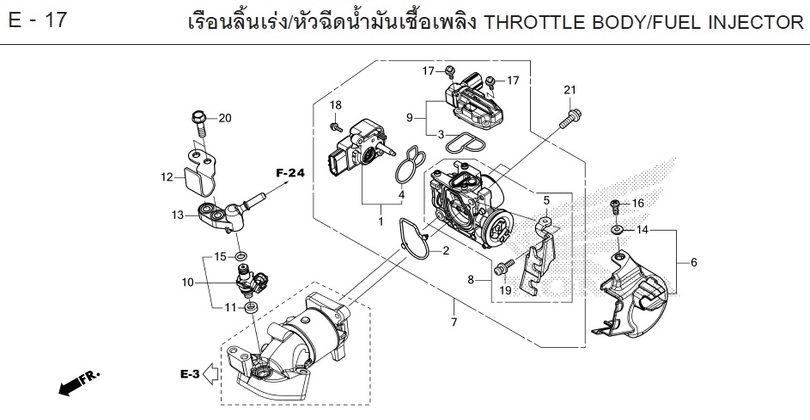

PCX160 2023 · E-17 THROTTLE BODY/FUEL INJECTOR
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-17
- 1 SENSOR SET, SIGNAL 16060-K0P-D01Qty per bike: 1
- 2 O-RING, THROTTLE BODY 16075-K0R-V01Qty per bike: 1
- 3 O-RING 16076-K0R-V01Qty per bike: 1
- 4 O-RING 16077-K0P-D01Qty per bike: 1
- 5 PLATE, THROTTLE CABLE 16169-K0R-V01Qty per bike: 1
- 6 COVER, THROTTLE BODY 16305-K0R-V00Qty per bike: 1
- 7 SENSOR SET, SIGNAL/THROTTLE BODY 16400-K0R-V02Qty per bike: 1
- 7 SENSOR SET, SIGNAL THROTTLE BODY 16400-K1Y-J61Qty per bike: 1
- 8 THROTTLE BODY ASSY 16410-K0R-V02Qty per bike: 1
- 8 THROTTLE BODY ASSY 16410-K1Y-J61Qty per bike: 1
- 9 IDLE AIR CONTROL VALVE SET 16430-K0R-V01Qty per bike: 1
- 10 INJECTOR SET, FUEL 16450-K0S-V01Qty per bike: 1
- 11 SEAL, INJECTOR 16472-KPC-D50Qty per bike: 1
- 12 CLAMP, DRAIN TUBE 17219-K1N-V00Qty per bike: 1
- 13 COVER, INJECTOR 17560-K0R-V00Qty per bike: 1
- 14 COLLAR, THROTTLE BODY COVER 61106-K62-B00Qty per bike: 1
- 15 O-RING, 6.3x2.2 91301-GGL-J01Qty per bike: 1
- 16 SCREW, 5x12 93500-05012-0HQty per bike: 1
- 17 SCREW, WASHER, 4x10 93891-04010-18Qty per bike: 3
- 18 SCREW, WASHER, 4x16 93891-04016-18Qty per bike: 2
- 19 SCREW, WASHER, 5x12 93892-05012-18Qty per bike: 1
- 20 BOLT, FLANGE, 6x22 95801-06022-00Qty per bike: 2
- 21 BOLT, FLANGE, 6x20 96001-06020-00Qty per bike: 2
