WAVE 100Z 2005 · E-10

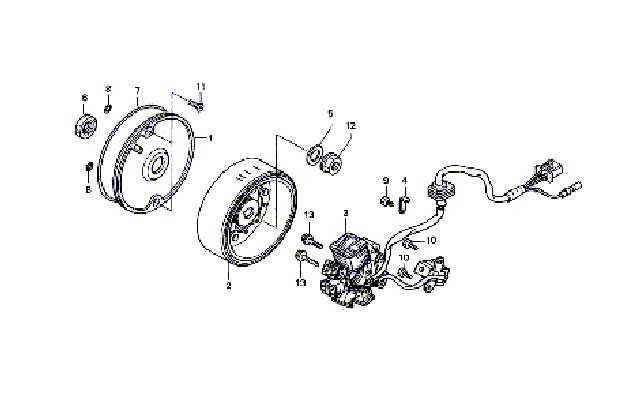

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-10
- 1 PLATE, ENGINE OIL BAFFLE 11321-KFL-950Qty per bike: 1
- 2 WHEEL, CAST (MAG) 31110-KRS-691Qty per bike: 1
- 3 STATOR COIL SET 31120-KRS-691Qty per bike: 1
- 4 BAND, A.C. GENERATOR WIRE 31141-141-860Qty per bike: 1
- 5 WASHER, 10 mm 90410-HC4-000Qty per bike: 1
- 6 OIL SEAL 91202-GK4-722Qty per bike: 1
- 7 GASKET, RUBBER FLYWHEEL COVER 91301-035-003Qty per bike: 1
- 8 RING, RUBBER CYLINDER HEAD NUT 91317-171-003Qty per bike: 2
- 9 BOLT, HEX 5X6 93301-05006-0HQty per bike: 1
- 10 BOLT, HEX 5X10 93301-05010-0HQty per bike: 2
- 11 SCREW 6X16 93600-06016-0AQty per bike: 2
- 12 NUT, FLANGE, 10 mm 94050-10000Qty per bike: 1
- 13 BOLT, FLANGE, 6x22 96001-06022-00Qty per bike: 2
