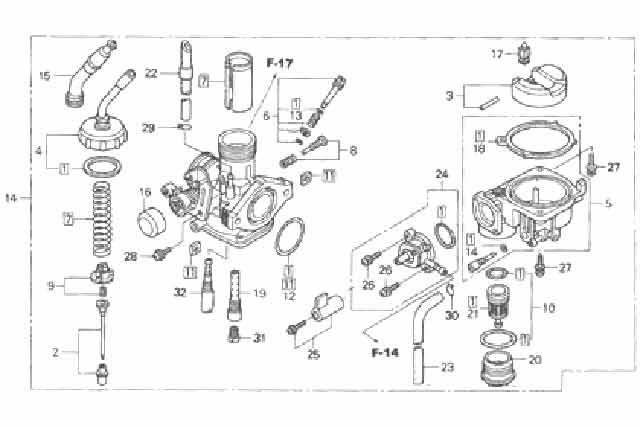

WAVE 100Z 2005 · E-16
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-16
- 1 GASKET SET, CARBURETOR 16010-KTL-851Qty per bike: 1
- 2 NEEDLE, THROTTLE 16012-KRS-601Qty per bike: 1
- 3 FLOAT SET 16013-KEV-900Qty per bike: 1
- 4 COVER, CARBURETOR 16014-KEV-900Qty per bike: 1
- 5 FLOAT CHAMBER SET 16015-KRS-601Qty per bike: 1
- 6 SCREW, AIR ADJUSTING 16016-KFM-901Qty per bike: 1
- 7 THROTTLE VALVE SET 16022-KTL-851Qty per bike: 1
- 8 SCREW, CARBURETOR ADJUSTING 16028-KFM-901Qty per bike: 1
- 9 PLATE, THROTTLE NEEDLE MOUNTING 16037-KRS-601Qty per bike: 1
- 10 GASKET, FUEL FILTER CUP 16040-KEV-900Qty per bike: 1
- 11 NUT SET, CARBURETOR MOUNTING 16041-GB5-D30Qty per bike: 1
- 12 O-RING 16075-GHB-B40Qty per bike: 1
- 13 O-RING 1.3X4.3 16075-GHB-640Qty per bike: 1
- 14 CARBURETOR 16100-KTL-851Qty per bike: 1
- 15 CAP, RUBBER THROTTLE 16118-GB4-003Qty per bike: 1
- 16 COVER, DUST 16148-141-881Qty per bike: 1
- 17 NEEDLE SET, FLOAT 16155-KRS-861Qty per bike: 1
- 18 GASKET, FLOAT CHAMBER 16163-GBG-960Qty per bike: 1
- 19 HOLDER, NEEDLE JET 16165-KRS-601Qty per bike: 1
- 20 CUP, FUEL FILTER 16175-GB0-911Qty per bike: 1
- 21 CUP, FILTER 16176-GB0-911Qty per bike: 1
- 22 TUBE, BREATHER 16199-KFM-901Qty per bike: 1
- 23 HOSE, RUBBER OIL DRAIN 16199-428-771Qty per bike: 1
- 24 FUEL COCK SET 16951-KPW-901Qty per bike: 1
- 25 LEVER SET, OPEN/CLOSE 16963-KPW-901Qty per bike: 1
- 26 SCREW, WASHER 3X12 93892-03012-18Qty per bike: 2
- 27 SCREW, WASHER 4X18 93892-04018-18Qty per bike: 2
- 28 SCREW, WASHER 5X10 93892-05010-18Qty per bike: 1
- 29 CLIP, TUBE (B 1.8) 95002-02089Qty per bike: 1
- 30 CLIP, TUBE (B6.5) 95002-02659Qty per bike: 1
- 31 JET, MAIN #72 99101-KRL-0720Qty per bike: 1
- 32 JET, SLOW #42 99103-KFL-0420Qty per bike: 1
