WAVE 100Z 2005 · E-6

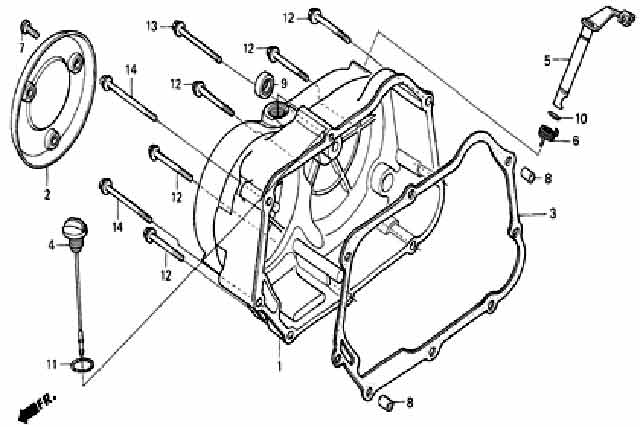

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-6
- 1 COVER, RIGHT CRANKCASE (BLACK) 11330-KEV-750Qty per bike: 1
- 2 GUARD, RIGHT COVER HEAT 11370-KRS-600Qty per bike: 1
- 3 GASKET, RIGHT CRANKCASE COVER 11394-KFL-850Qty per bike: 1
- 4 DIPSTICK, OIL LEVEL 15650-KEV-750Qty per bike: 1
- 5 ARM, CLUTCH LIFTER 22810-KFL-900Qty per bike: 1
- 6 SPRING, CLUTCH LIFTER ARM 22815-166-000Qty per bike: 1
- 7 BOLT, FLANGE, 6x12 90005-GHB-610Qty per bike: 3
- 8 PIN, DOWEL, 8x12 90702-KFM-900Qty per bike: 2
- 9 OIL SEAL, 13.8x24x5 91202-KRS-971Qty per bike: 1
- 10 O-RING 9 mm 91303-719-000Qty per bike: 1
- 11 O-RING, 18x3 91307-035-000Qty per bike: 1
- 12 BOLT, FLANGE, 6x40 96001-06040-00Qty per bike: 5
- 13 BOLT, FLANGE, 6x65 96001-06065-00Qty per bike: 1
- 14 BOLT, FLANGE, 6x80 96001-06080-00Qty per bike: 2
