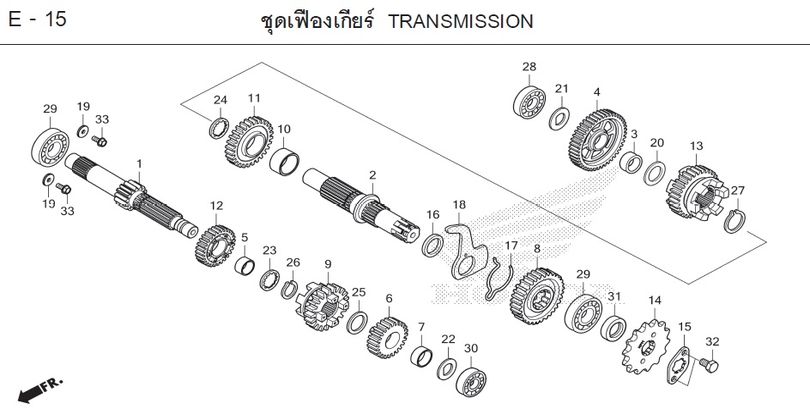

WAVE 110 2026 · E-15 TRANSMISSION
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-15
- 1 SHAFT, DRIVE (14T) 23211-K1M-T00Qty per bike: 1
- 2 SHAFT, DRIVEN (19T) 23221-K1M-T00Qty per bike: 1
- 3 BUSH, 15 mm 23415-KPH-900Qty per bike: 1
- 4 GEAR, DRIVEN 1 (44T) 23421-K1M-T00Qty per bike: 1
- 5 BUSH, 17 mm 23422-K1M-T00Qty per bike: 1
- 6 GEAR, DRIVE 2 (18T) 23431-K1M-T00Qty per bike: 1
- 7 BUSH, 12 mm 23432-K1M-T00Qty per bike: 1
- 8 GEAR, DRIVEN 2 (33T) 23441-K1M-T00Qty per bike: 1
- 9 GEAR, DRIVE 3 (21T) 23451-K1M-T00Qty per bike: 1
- 10 BUSH, 20 mm 23452-K1M-T00Qty per bike: 1
- 11 GEAR, DRIVEN 3 (28T) 23461-K1M-T00Qty per bike: 1
- 12 GEAR, DRIVE 4 (28T) 23471-K1M-T00Qty per bike: 1
- 13 GEAR, DRIVEN 4 (30T) 23481-K1M-T00Qty per bike: 1
- 14 SPROCKET, DRIVE (14T) 23801-K1M-T01Qty per bike: 1
- 14 GEAR, POWER TRANSMISSION 23801-K2J-TQ1Qty per bike: 1
- 15 PLATE, FRONT SPROCKET FIXING 23802-GN5-910Qty per bike: 1
- 16 COLLAR, GEARBOX LOCK PLATE 23911-K1M-T00Qty per bike: 1
- 17 SPRING 24305-K1M-T00Qty per bike: 1
- 18 PLATE, GEARBOX LOCK 24306-K1M-T00Qty per bike: 1
- 19 WASHER, 6.2x19x2.3 90407-KWW-740Qty per bike: 2
- 20 WASHER, THRUST, 15 mm 90412-187-000Qty per bike: 1
- 21 WASHER, SPECIAL, 15 mm 90412-K56-N00Qty per bike: 1
- 22 WASHER, SPECIAL, 12 mm 90452-KGH-900Qty per bike: 1
- 23 WASHER, GROOVED, 17x23x1.6 90452-KRM-840Qty per bike: 1
- 24 RING, SNAP, 20 mm 90453-KRM-840Qty per bike: 1
- 25 WASHER, THRUST, 12 mm 90459-107-000Qty per bike: 1
- 26 CLIP, LOCK, 17 mm 90601-KRM-840Qty per bike: 1
- 27 WASHER, LOCK, 20 mm 90605-KVS-900Qty per bike: 1
- 28 BEARING, RADIAL BALL, 15x42x11 91003-K1M-T01Qty per bike: 1
- 29 BEARING 91006-K14-902Qty per bike: 2
- 29 BEARING 91015-K3F-T41Qty per bike: 2
- 29 BEARING, RADIAL BALL, 6203 91015-KSS-901Qty per bike: 2
- 30 BEARING 91013-K3F-T41Qty per bike: 1
- 30 BEARING, RADIAL BALL, 6001 91013-KSS-901Qty per bike: 1
- 31 OIL SEAL, 17x30x5 91204-KPH-902Qty per bike: 1
- 32 BOLT, HEX, 6x10 92101-06010-0AQty per bike: 2
- 33 BOLT, FLANGE, 6x14 95701-06014-00Qty per bike: 2
