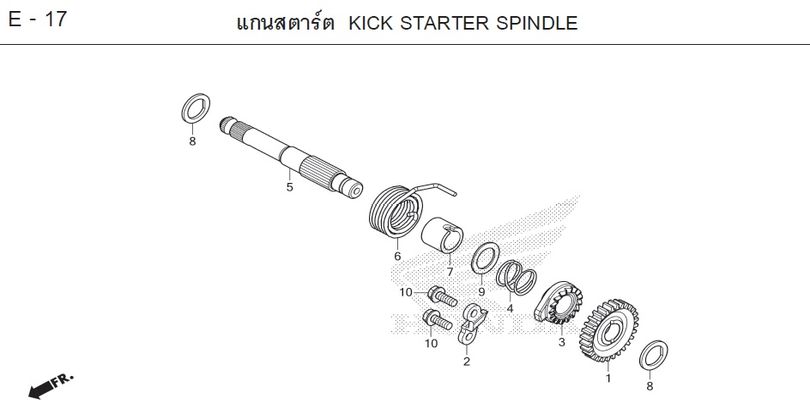

WAVE 110 2026 · E-17 KICK STARTER SPINDLE
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-17
- 1 GEAR, STARTER (29T) 28211-K1M-T00Qty per bike: 1
- 1 GEAR, STARTER 28211-K1M-T40Qty per bike: 1
- 2 HOLDER, KICK STARTER SPRING 28215-K1M-T00Qty per bike: 1
- 3 GEAR, ONE-WAY STARTING 28221-K1M-T00Qty per bike: 1
- 4 SPRING 28223-K1M-T00Qty per bike: 1
- 5 SPINDLE, KICK STARTER 28251-K1M-T00Qty per bike: 1
- 6 SPRING, RETURN 28281-K1M-T00Qty per bike: 1
- 6 SPRING, RETURN 28281-K2J-T01Qty per bike: 1
- 7 COLLAR, KICK STARTER SPINDLE SPRING 28282-K1M-T00Qty per bike: 1
- 8 WASHER, SPECIAL, 14 mm 90451-KGH-900Qty per bike: 2
- 9 WASHER, 16.2x23 90452-K1M-T00Qty per bike: 1
- 10 BOLT, FLANGE, 6x16 95701-06016-00Qty per bike: 2
This catalogue is shared by: WAVE 110 2026. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
