WAVE 125i 2014 · E-3 CAM CHAIN/TENSIONER

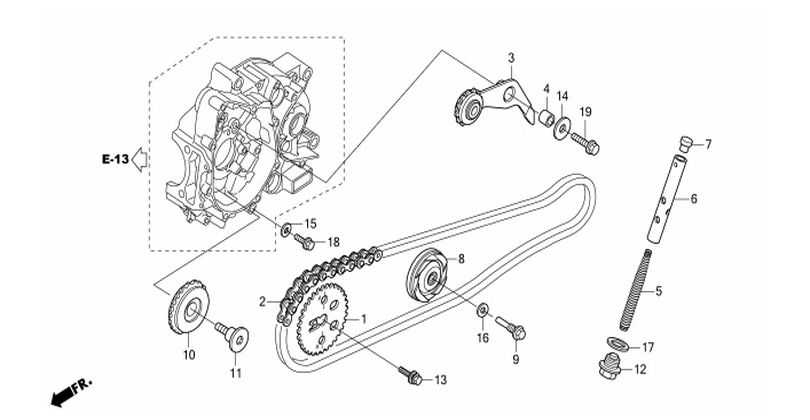

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-3
- 1 SPROCKET, CAM CHAIN (32T) 14321-KYZ-900Qty per bike: 1
- 2 CHAIN, CAM (88LE-SH) 14401-KYZ-900Qty per bike: 1
- 2 CHAIN, CAM (DID25SH-88LE) 14401-KYZ-T01Qty per bike: 1
- 3 ARM, CHAIN TENSIONER RUBBER 14500-KYZ-900Qty per bike: 1
- 4 COLLAR, CHAIN TENSIONER RUBBER ARM 14531-KYZ-900Qty per bike: 1
- 5 SPRING, TENSIONER SET 14541-GB4-681Qty per bike: 1
- 6 SHAFT, TENSIONER SET 14550-GB0-911Qty per bike: 1
- 6 SHAFT, TENSIONER SET 14550-KRS-691Qty per bike: 1
- 7 BOOT, TENSIONER SHAFT SET 14566-086-030Qty per bike: 1
- 8 GUIDE, CHAIN RUBBER 14610-KWB-600Qty per bike: 1
- 9 PIN, CHAIN GUIDE RUBBER 14615-KFL-850Qty per bike: 1
- 10 RUBBER, LOWER CHAIN TENSIONER 14670-KYZ-900Qty per bike: 1
- 11 BOLT, LOWER CHAIN TENSIONER RUBBER MOUNTING 14675-KYZ-900Qty per bike: 1
- 12 BOLT, SEALING, 14 mm 90081-035-000Qty per bike: 1
- 13 BOLT, WASHER, 8x22 90082-KWW-740Qty per bike: 1
- 14 WASHER, 8.5x26x2.3 90404-KWB-600Qty per bike: 1
- 15 WASHER, SEALING, 6.5 mm 90463-ML7-000Qty per bike: 1
- 16 WASHER, 8 mm 90475-KWB-600Qty per bike: 1
- 17 WASHER, SEALING, 14 mm 90544-KF0-000Qty per bike: 1
- 18 BOLT, FLANGE, 6x18 95701-06018-00Qty per bike: 1
- 19 BOLT, FLANGE, 8x25 95701-08025-00Qty per bike: 1
