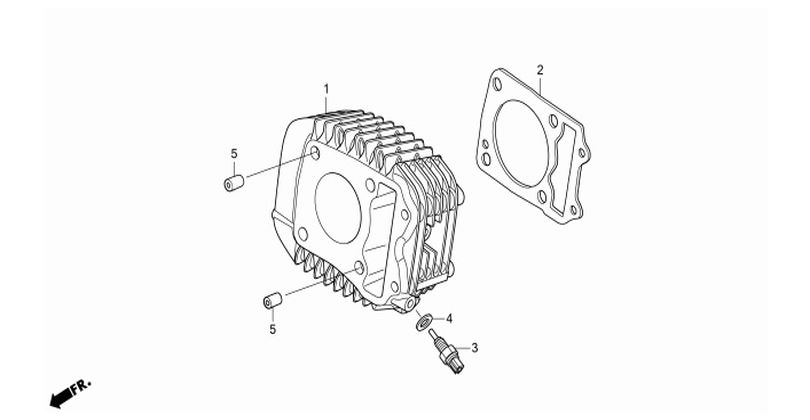

WAVE 125i 2014 · E-4 CYLINDER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-4
- 1 CYLINDER 12100-KYZ-710Qty per bike: 1
- 2 GASKET, CYLINDER 12191-KYZ-900Qty per bike: 1
- 3 SENSOR, OIL TEMPERATURE 37750-KPH-701Qty per bike: 1
- 4 WASHER, SEALING, 10.2 mm 90443-MB0-000Qty per bike: 1
- 5 PIN, DOWEL, 10x12 94301-10120Qty per bike: 2
