WAVE 125i 2014 · F-14 SEAT

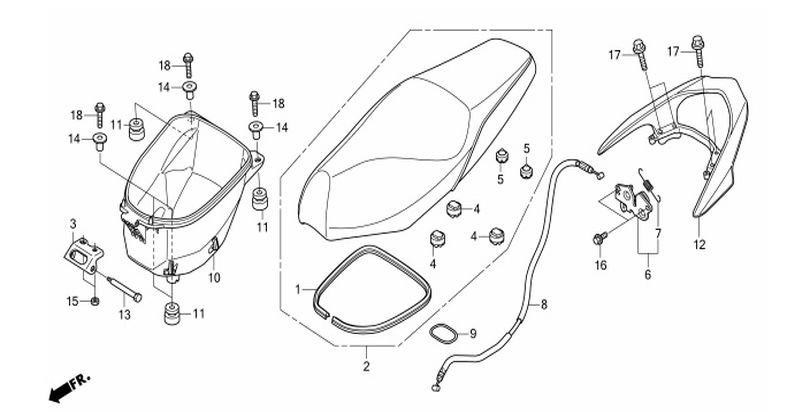

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-14
- 1 SEAL, RUBBER 77115-KYZ-900Qty per bike: 1
- 2 SEAT ASSY 77200-KYZ-V00Qty per bike: 1
- 3 BRACKET, SEAT 77201-KWB-600Qty per bike: 1
- 4 RUBBER B, SEAT 77214-KPH-900Qty per bike: 3
- 5 RUBBER C, SEAT MOUNTING 77215-KW7-900Qty per bike: 2
- 6 SEAT LOCK SET 77230-KYZ-900Qty per bike: 1
- 7 SPRING, SEAT LOCK SET 77234-KYZ-900Qty per bike: 1
- 8 CABLE, SEAT LOCK 77241-KYZ-T01Qty per bike: 1
- 9 RUBBER BAND, BOX (ECM) 80124-KPH-700Qty per bike: 1
- 10 BOX, UTILITY 81250-KYZ-900Qty per bike: 1
- 11 RUBBER, UTILITY BOX 81253-KPH-900Qty per bike: 4
- 12 RAIL, REAR GRAB (ALL COLORS) 84100-KYZ-900ZNQty per bike: 1
- 13 BOLT, SEAT MOUNTING LUG 90105-KPH-901Qty per bike: 1
- 14 COLLAR, 6.2x20 90502-KPH-900Qty per bike: 4
- 15 NUT, HEX, 6 mm 94001-06070-0SQty per bike: 2
- 16 BOLT, FLANGE, 6x12 95701-06012-00Qty per bike: 2
- 17 BOLT, FLANGE, 8x40 95701-08040-00Qty per bike: 4
- 18 BOLT, FLANGE, 6x30 96001-06030-00Qty per bike: 4
