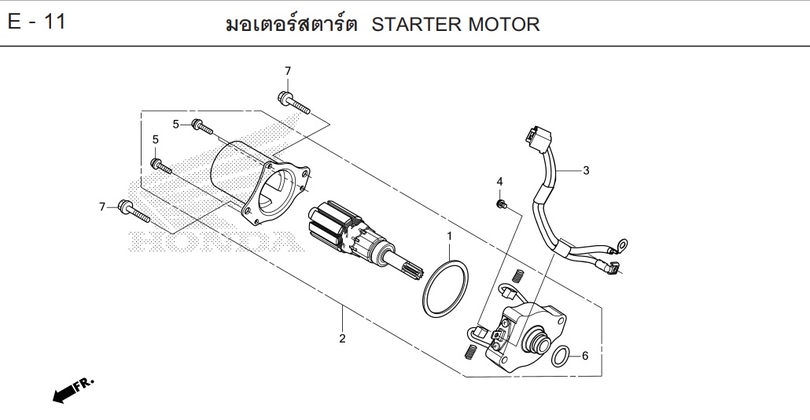

CT125 2023 · E-11 STARTER MOTOR
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-11
- 1 WASHER 31206-GFC-771Qty per bike: 1
- 2 STARTER MOTOR SET 31210-K1M-T01Qty per bike: 1
- 3 WIRE, STARTER MOTOR 32105-K2E-T11Qty per bike: 1
- 4 SCREW, WASHER, 4x6 90001-KWW-742Qty per bike: 1
- 5 SCREW, WASHER, 5x16 90004-KWW-742Qty per bike: 3
- 6 O-RING, 16x3.1 91309-GFC-771Qty per bike: 1
- 7 BOLT, FLANGE, 6x30 95701-06030-00Qty per bike: 2
