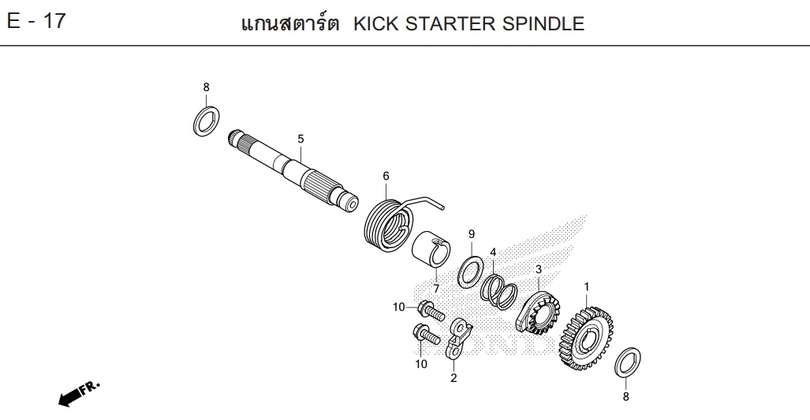

CT125 2023 · E-17 KICK STARTER SPINDLE
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-17
- 1 GEAR, STARTER (27T) 28211-K2E-T10Qty per bike: 1
- 2 HOLDER, KICK STARTER SPRING 28215-K1M-T00Qty per bike: 1
- 3 GEAR, ONE-WAY STARTING 28221-K1M-T00Qty per bike: 1
- 4 SPRING 28223-K1M-T00Qty per bike: 1
- 5 SPINDLE, KICK STARTER 28251-K1M-T00Qty per bike: 1
- 6 SPRING, RETURN 28281-K1M-T00Qty per bike: 1
- 7 COLLAR, KICK STARTER SPINDLE SPRING 28282-K1M-T00Qty per bike: 1
- 8 WASHER, SPECIAL, 14 mm 90451-KGH-900Qty per bike: 2
- 9 WASHER, 16.2x23 90452-K1M-T00Qty per bike: 1
- 10 BOLT, FLANGE, 6x16 95701-06016-00Qty per bike: 2
This catalogue is shared by: CT125 2023. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
