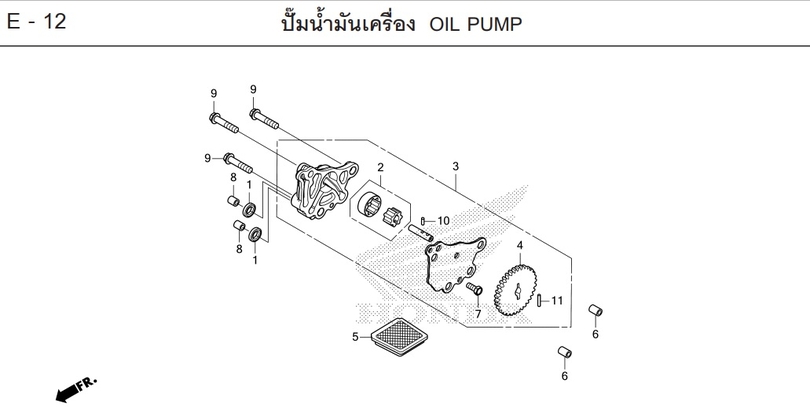

CT125 2023 · E-12 OIL PUMP
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-12
- 1 GASKET, CYLINDER HEAD COVER B 12396-KRM-840Qty per bike: 2
- 2 ROTOR SET, OIL PUMP 15021-K1M-T00Qty per bike: 1
- 3 OIL PUMP ASSY 15100-K26-G00Qty per bike: 1
- 4 GEAR, OIL PUMP DRIVE (25T) 15133-K1M-T00Qty per bike: 1
- 5 STRAINER, OIL FILTER 15421-KSP-910Qty per bike: 1
- 6 PIN, DOWEL, 8x12 90702-KFM-900Qty per bike: 2
- 7 BOLT, HEX, 5x12 93301-05012-0JQty per bike: 1
- 8 PIN, DOWEL, 8x10 94301-08100Qty per bike: 2
- 9 BOLT, FLANGE, 6x28 95701-06028-00Qty per bike: 3
- 10 BEARING, NEEDLE ROLLER, 2.5x8.5 96220-25085Qty per bike: 1
- 11 BEARING, NEEDLE ROLLER, 2.5x13.5 96220-25135Qty per bike: 1
