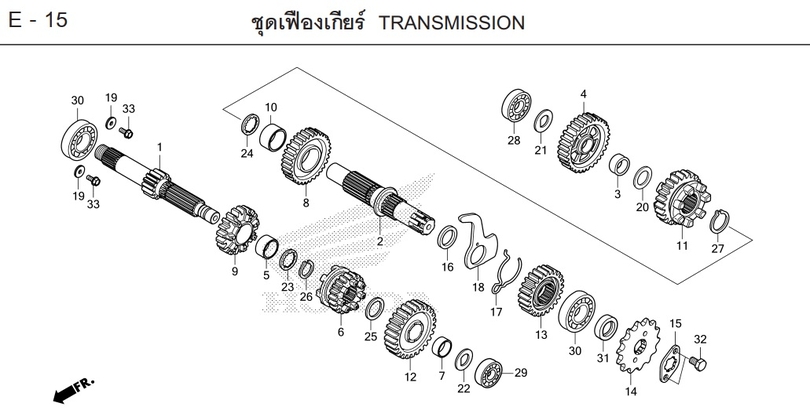

CT125 2023 · E-15 TRANSMISSION

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.

All parts on page E-15

1 SHAFT, DRIVE (14T) 23211-K0G-T20Qty per bike: 1
2 SHAFT, DRIVEN (19T) 23221-K1M-T00Qty per bike: 1
3 BUSH, 15 mm 23415-K0G-T20Qty per bike: 1
4 GEAR, DRIVEN 1 (35T) 23421-K0G-T20Qty per bike: 1
5 BUSH, 17 mm 23422-K0G-T20Qty per bike: 1
6 GEAR, DRIVE 2 (20T) 23431-K0G-T20Qty per bike: 1
7 BUSH, 12 mm 23432-K1M-T00Qty per bike: 1
8 GEAR, DRIVEN 2 (31T) 23441-K0G-T20Qty per bike: 1
9 GEAR, DRIVE 3 (20T) 23451-K0G-T20Qty per bike: 1
10 BUSH, 20 mm 23452-K1M-T00Qty per bike: 1
11 GEAR, DRIVEN 3 (23T) 23461-K0G-T20Qty per bike: 1
12 GEAR, DRIVE 4 (26T) 23471-K0G-T20Qty per bike: 1
13 GEAR, DRIVEN 4 (24T) 23481-K0G-T20Qty per bike: 1
14 SPROCKET, DRIVE (14T) 23801-K2E-A11Qty per bike: 1
15 PLATE, FRONT SPROCKET FIXING 23802-GN5-910Qty per bike: 1
16 COLLAR, GEARBOX LOCK PLATE 23911-K1M-T00Qty per bike: 1
17 SPRING 24305-K1M-T00Qty per bike: 1
18 PLATE, GEARBOX LOCK 24306-K1M-T00Qty per bike: 1
19 WASHER, 6.2x19x2.3 90407-KWW-740Qty per bike: 2
20 WASHER, THRUST, 15 mm 90412-187-000Qty per bike: 1
21 WASHER, SPECIAL, 15 mm 90412-K56-N00Qty per bike: 1
22 WASHER, SPECIAL, 12 mm 90452-KGH-900Qty per bike: 1
23 WASHER, GROOVED, 17x23x1.6 90452-KRM-840Qty per bike: 1
24 RING, SNAP, 20 mm 90453-KRM-840Qty per bike: 1
25 WASHER, THRUST, 12 mm 90459-107-000Qty per bike: 1
26 CLIP, LOCK, 17 mm 90601-KRM-840Qty per bike: 1
27 WASHER, LOCK, 20 mm 90605-KVS-900Qty per bike: 1
28 BEARING, RADIAL BALL, 15x42x11 91003-K1M-T01Qty per bike: 1
29 BEARING, RADIAL BALL, 6001 91013-KSS-901Qty per bike: 1
29 BEARING, RADIAL BALL, 6001 91013-KZV-J01Qty per bike: 1
30 BEARING, RADIAL BALL, 6203 91015-KSS-901Qty per bike: 2
30 BEARING, RADIAL BALL, 6203 91015-KZV-J01Qty per bike: 2
31 OIL SEAL, 17x30x5 91204-KPH-902Qty per bike: 1
32 BOLT, HEX, 6x10 92101-06010-0AQty per bike: 2
33 BOLT, FLANGE, 6x14 95701-06014-00Qty per bike: 2
