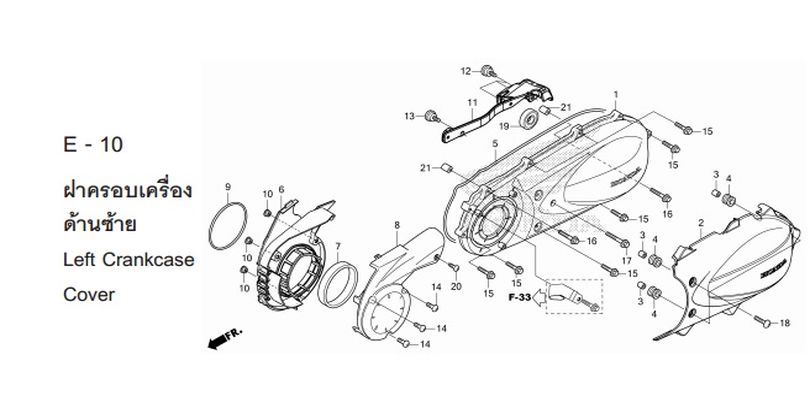

FORZA300 2013 · E-10 COVER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-10
- 1 COVER, LEFT CRANKCASE 11341-K04-930Qty per bike: 1
- 2 COVER, LEFT CRANKCASE OUTER 11350-K04-930Qty per bike: 1
- 3 COLLAR, LEFT CRANKCASE COVER OUTER 11355-KWN-700Qty per bike: 3
- 4 RUBBER (BOTH SIDES) 11356-KWN-700Qty per bike: 3
- 5 GASKET, LEFT CRANKCASE COVER 11395-KTW-900Qty per bike: 1
- 6 TUBE, V-BELT CHAMBER AIR 19411-K04-930Qty per bike: 1
- 7 ELEMENT, V-BELT CHAMBER AIR CLEANER 19412-KTW-900Qty per bike: 1
- 8 CAP, V-BELT CHAMBER AIR TUBE 19414-KTW-901Qty per bike: 1
- 9 SEAL, V-BELT CHAMBER AIR TUBE 19415-KTW-900Qty per bike: 1
- 10 COLLAR 19416-KEY-900Qty per bike: 3
- 11 COVER, VEHICLE SPEED SENSOR 32112-K04-930Qty per bike: 1
- 12 BOLT, 6x18 90001-K04-930Qty per bike: 3
- 13 BOLT, 6x22 90002-K04-930Qty per bike: 1
- 14 BOLT, SPECIAL, 6x18 90006-K04-930Qty per bike: 3
- 15 BOLT, FLANGE, 6x32 (NSHF) 90010-K04-930Qty per bike: 8
- 16 BOLT, FLANGE, 6x40 (NSHF) 90011-K04-930Qty per bike: 2
- 17 BOLT, FLANGE, 6x50 (NSHF) 90012-K04-930Qty per bike: 1
- 18 BOLT, SPECIAL, 6x22 90085-MAJ-A20Qty per bike: 3
- 19 BEARING, RADIAL BALL, 6004UU 91008-K04-931Qty per bike: 1
- 20 SCREW, TAPPING, 4x16 93903-34480Qty per bike: 1
- 21 PIN, DOWEL, 8x14 94301-08140Qty per bike: 2
This catalogue is shared by: FORZA300 2013. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
