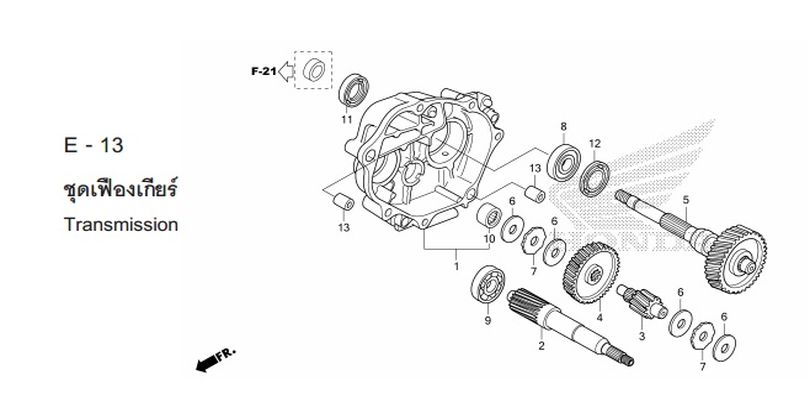

FORZA300 2013 · E-13 TRANSMISSION
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-13
- 1 HOUSING, FINAL GEAR 21300-K04-930Qty per bike: 1
- 2 SHAFT, DRIVE (18T) 23411-K04-930Qty per bike: 1
- 3 SHAFT, DRIVEN (12T) 23421-K04-930Qty per bike: 1
- 4 GEAR, IDLE (44T) 23422-K04-930Qty per bike: 1
- 5 GEAR, FINAL (37T) 23430-K04-930Qty per bike: 1
- 6 WASHER, 14x42x1 90411-KTW-B00Qty per bike: 4
- 7 WASHER, 14 mm 90412-K04-930Qty per bike: 2
- 8 BEARING, RADIAL BALL, 6205UU 91006-K04-931Qty per bike: 1
- 9 BEARING, RADIAL BALL, 6302 91007-K04-931Qty per bike: 1
- 10 BEARING, NEEDLE ROLLER, 14x22x16 91106-KM1-013Qty per bike: 1
- 11 SEAL, DUST, 34x46x8 91251-KSV-J11Qty per bike: 1
- 12 OIL SEAL, 34x52x5 (NOK) 91253-KM1-003Qty per bike: 1
- 13 PIN, DOWEL A, 12x16 94301-12160Qty per bike: 2
