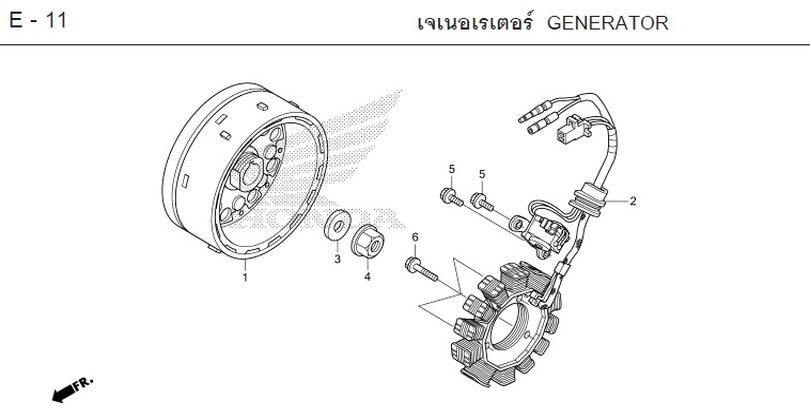

WAVE 110i 2020 · E-11 GENERATOR
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-11
- 1 WHEEL, CAST (MAG) 31110-K58-TC1Qty per bike: 1
- 1 WHEEL, CAST (MAG) 31110-K58-TD1Qty per bike: 1
- 2 COIL, STATOR 31120-K58-TC1Qty per bike: 1
- 3 WASHER, 10x24 90403-KN6-930Qty per bike: 1
- 4 NUT, FLANGE, 10 mm 94050-10000Qty per bike: 1
- 5 BOLT, FLANGE, 6x16 96001-06016-00Qty per bike: 2
- 6 BOLT, FLANGE, 6x22 96001-06022-00Qty per bike: 3
