WAVE 110i 2020 · E-15 CRANKSHAFT/PISTON

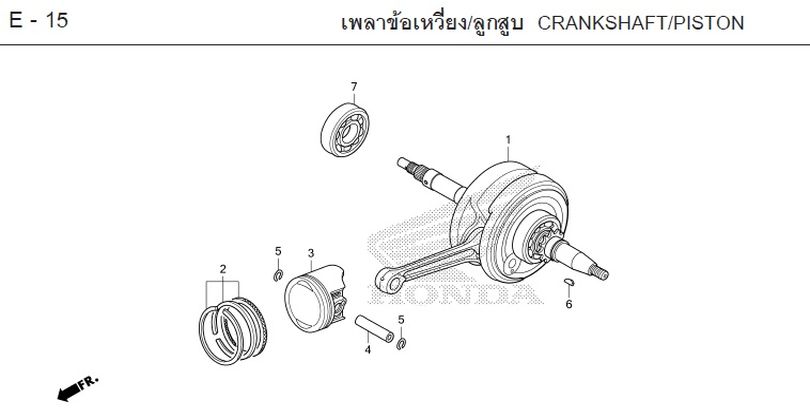

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-15
- 1 CRANKSHAFT COMP 13000-K58-T80Qty per bike: 1
- 2 RING, PISTON 13011-K58-305Qty per bike: 1
- 2 PISTON RING SET (STD) 13011-K90-V00Qty per bike: 1
- 2 RING, PISTON 13021-K58-305Qty per bike: 1
- 2 PISTON RING SET (0.25) 13021-K90-V00Qty per bike: 1
- 2 RING, PISTON 13031-K58-305Qty per bike: 1
- 2 PISTON RING SET (0.50) 13031-K90-V00Qty per bike: 1
- 2 RING, PISTON 13041-K58-305Qty per bike: 1
- 2 PISTON RING SET (0.75) 13041-K90-V00Qty per bike: 1
- 2 RING, PISTON 13051-K58-305Qty per bike: 1
- 2 PISTON RING SET (1.00) 13051-K90-V00Qty per bike: 1
- 3 PISTON (STD) 13101-K03-H10Qty per bike: 1
- 3 PISTON (0.25) 13102-K03-H10Qty per bike: 1
- 3 PISTON (0.50) 13103-K03-H10Qty per bike: 1
- 3 PISTON (0.75) 13104-K03-H10Qty per bike: 1
- 3 PISTON (1.00) 13105-K03-H10Qty per bike: 1
- 4 PIN, PISTON 13111-087-000Qty per bike: 1
- 5 CLIP, PISTON PIN, 13 mm 13115-GN5-910Qty per bike: 2
- 6 KEY, 4 mm 90741-003-010Qty per bike: 1
- 7 BEARING, RADIAL BALL, 63/22 RH 91001-K03-N30Qty per bike: 1
- 7 BEARING, RADIAL BALL, 63/22 91001-K03-N31Qty per bike: 1
- 7 BEARING, RADIAL BALL, 63/22 91001-K03-N32Qty per bike: 1
- 7 BEARING, RADIAL BALL, 63/22 91001-K58-T81Qty per bike: 1
