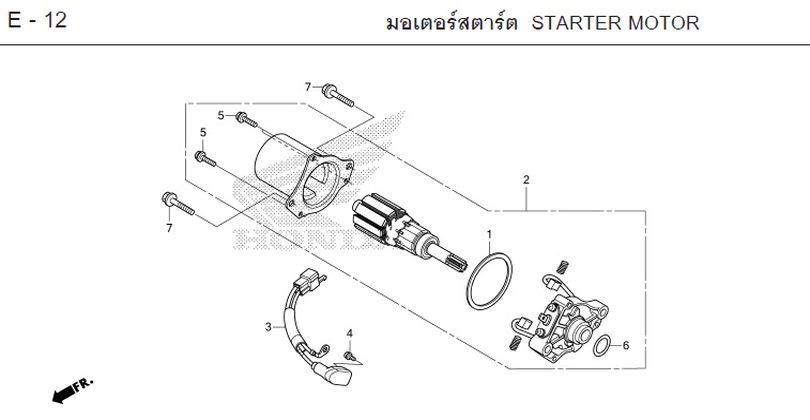

WAVE 110i 2020 · E-12 STARTER MOTOR
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-12
- 1 WASHER 31206-GFC-771Qty per bike: 1
- 2 STARTER MOTOR SET 31210-KWW-742Qty per bike: 1
- 3 WIRE, STARTER MOTOR 32105-KWW-742Qty per bike: 1
- 4 SCREW, WASHER, 4x6 90001-KWW-742Qty per bike: 1
- 5 SCREW, WASHER, 5x16 90004-KWW-742Qty per bike: 3
- 6 O-RING, 16x3.1 91309-GFC-771Qty per bike: 1
- 7 BOLT, FLANGE, 6x32 96001-06032-00Qty per bike: 2
This catalogue is shared by: WAVE 110i 2020. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
