WAVE 110i 2020 · E-17 GEARSHIFT DRUM

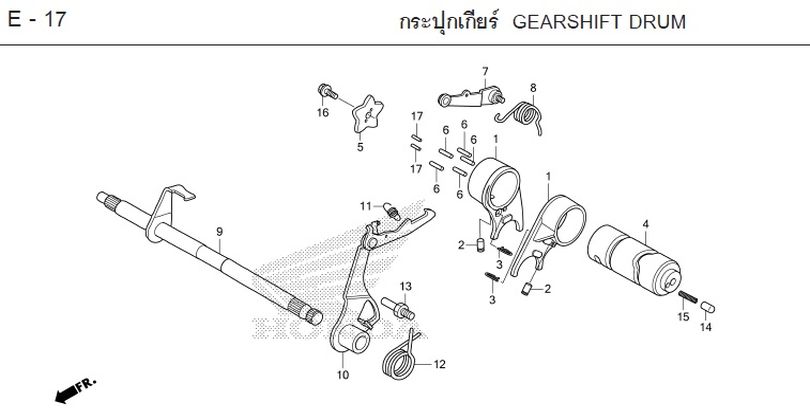

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-17
- 1 PAWL, GEARSHIFT 24211-KWW-741Qty per bike: 2
- 2 PIN, PAWL 24261-121-742Qty per bike: 2
- 3 CLIP, PAWL PIN LOCK 24263-028-000Qty per bike: 2
- 4 GEARBOX 24301-KWW-741Qty per bike: 1
- 5 PLATE, GEAR POSITION STOPPER 24411-KWW-740Qty per bike: 1
- 6 PIN, GEARBOX 24421-200-000Qty per bike: 5
- 7 ARM, GEARSHIFT 24430-GB4-772Qty per bike: 1
- 8 SPRING, GEARSHIFT ARM 24435-KWW-C00Qty per bike: 1
- 9 SPINDLE, GEARSHIFT 24610-KWW-740Qty per bike: 1
- 10 ARM, GEARSHIFT 24630-KWB-600Qty per bike: 1
- 11 SPRING, GEARSHIFT ARM 24641-041-000Qty per bike: 1
- 12 SPRING, RETURN 24651-041-000Qty per bike: 1
- 13 PIN, RETURN SPRING 24652-KPH-900Qty per bike: 1
- 14 PIN, GEARSHIFT SWITCH 35751-KPH-900Qty per bike: 1
- 15 SPRING, GEARSHIFT SWITCH 35752-KPH-900Qty per bike: 1
- 16 BOLT, 6 mm 90071-171-010Qty per bike: 1
- 17 BEARING, NEEDLE ROLLER, 3x10 96220-30100Qty per bike: 2
