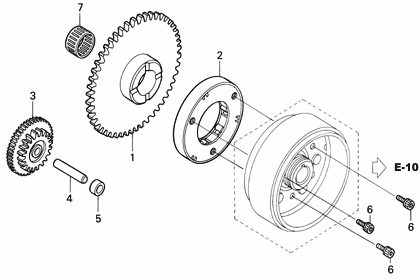

WAVE 125S 2004 · E-11 STARTING CLUTCH
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-11
- 1 GEAR, STARTING CLUTCH DRIVE 57T 28110-KPH-900Qty per bike: 1
- 2 ONE-WAY CLUTCH SET 28120-KPH-901Qty per bike: 1
- 3 GEAR, STARTING CLUTCH REDUCTION 28131-KPH-880Qty per bike: 1
- 3 GEAR, STARTING CLUTCH REDUCTION 28131-KPH-900Qty per bike: 1
- 4 SHAFT, REDUCTION GEAR 28132-KPH-900Qty per bike: 1
- 5 COLLAR, REDUCTION GEAR SHAFT 28133-KPH-900Qty per bike: 1
- 6 BOLT, 8x18 90010-KM1-000Qty per bike: 3
- 7 BEARING 91071-KPH-901Qty per bike: 1
This catalogue is shared by: WAVE 125S 2004. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
