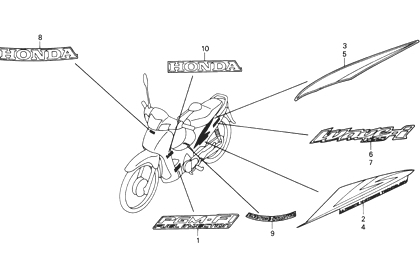

WAVE 125S 2004 · F-33-1
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-33-1
- 1 MARK, PGM-FI (BLUE) 87104-KPH-690ZAQty per bike: 1
- 1 MARK, PGM-FI (BLACK) 87104-KPH-690ZBQty per bike: 1
- 2 STICKER, BODY COVER A BLUE COLOR VEHICLE 87106-KPH-690ZAQty per bike: 1
- 2 STICKER, RIGHT BODY COVER (BLACK) 87106-KPH-690ZBQty per bike: 1
- 3 STICKER, BODY COVER (BLUE) 87107-KPH-690ZAQty per bike: 1
- 3 STICKER, RIGHT BODY COVER (BLACK) 87107-KPH-690ZBQty per bike: 1
- 4 STICKER, BODY COVER A (BLUE) 87108-KPH-690ZAQty per bike: 1
- 4 STICKER, LEFT BODY COVER (BLACK) 87108-KPH-690ZBQty per bike: 1
- 5 STICKER, BODY COVER (BLUE) 87109-KPH-690ZAQty per bike: 1
- 5 STICKER, LEFT BODY COVER (BLACK) 87109-KPH-690ZBQty per bike: 1
- 6 EMBLEM, RIGHT BODY SIDE 87116-KPH-690Qty per bike: 1
- 8 MARK, HONDA 87120-KPH-690Qty per bike: 1
- 9 MARK, STARTER SWITCH (WHITE) 87121-KGH-910ZAQty per bike: 1
- 10 MARK, HONDA (BLUE) 87130-KPH-690ZAQty per bike: 1
- 10 MARK, HONDA (BLACK) 87130-KPH-690ZBQty per bike: 1
This catalogue is shared by: WAVE 125S 2004. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
