WAVE 125S 2004 · E-14 CRANKSHAFT/PISTON

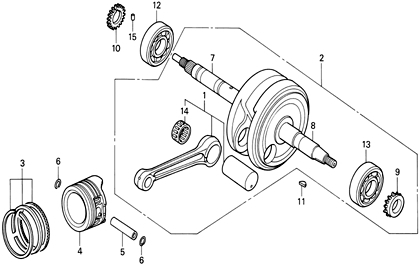

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-14
- 1 CONNECTING ROD SET 06381-KPH-900Qty per bike: 1
- 2 CRANK SET 13000-KPH-900Qty per bike: 1
- 3 PISTON RING SET (STD) 13011-KPH-900Qty per bike: 1
- 3 PISTON RING SET _ (O/S,0.25) 13021-KPH-900Qty per bike: 1
- 3 PISTON RING SET 0.50 13031-KPH-900Qty per bike: 1
- 3 PISTON RING SET (O/S,0.75) 13041-KPH-900Qty per bike: 1
- 3 PISTON RING SET (O/S,1.00) 13051-KPH-900Qty per bike: 1
- 4 PISTON (STD) 13101-KPH-900Qty per bike: 1
- 4 PISTON 0.25 13102-KPH-305Qty per bike: 1
- 4 PISTON 0.50 13103-KPH-305Qty per bike: 1
- 4 PISTON 0.75 13104-KPH-305Qty per bike: 1
- 4 PISTON 1.00 13105-KPH-305Qty per bike: 1
- 5 PIN, PISTON 13111-087-000Qty per bike: 1
- 6 CLIP, PISTON PIN, 13 mm 13115-GN5-910Qty per bike: 2
- 7 CRANK SET, RIGHT 13310-KPH-900Qty per bike: 1
- 8 CRANKSHAFT, LEFT 13321-KPH-900Qty per bike: 1
- 9 GEAR, TIMING 14311-KPH-900Qty per bike: 1
- 10 GEAR, OIL PUMP DRIVE (19T) 15341-KPH-900Qty per bike: 1
- 11 KEY, CRANKSHAFT 90701-HB6-010Qty per bike: 1
- 12 BEARING, RADIAL BALL, 63/22 (FUJIKOSHI) 91001-KPH-901Qty per bike: 1
- 13 BEARING, RADIAL BALL 91002-KPH-901Qty per bike: 1
- 14 BEARING, CONNECTING ROD 91101-GF6-003Qty per bike: 1
- 14 BEARING, CONNECTING ROD 91102-GF6-003Qty per bike: 1
- 14 BEARING, CONNECTING ROD 91103-GF6-003Qty per bike: 1
- 15 PIN, DOWEL, 3x5 94303-03050Qty per bike: 1
