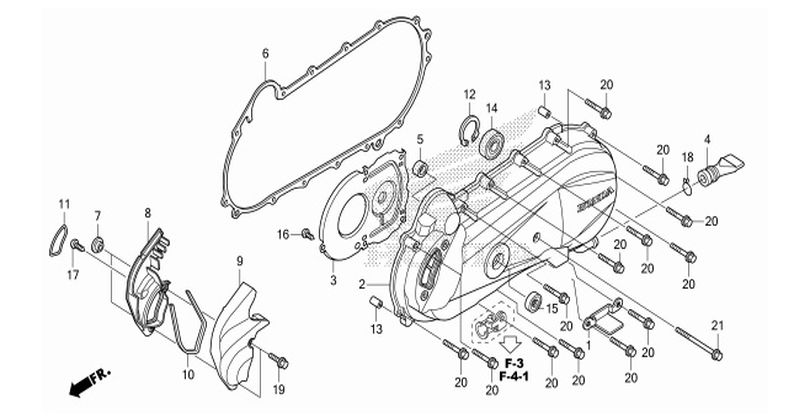

SCOOPY i 2013 · E-10 COVER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-10
- 1 COVER, AIR VENT HOLE 11230-KVB-900Qty per bike: 1
- 2 COVER, LEFT CRANKCASE 11340-K16-900Qty per bike: 1
- 2 COVER, LEFT CRANKCASE 11340-K16-910Qty per bike: 1
- 3 PLATE, LEFT CRANKCASE COVER 11342-KZL-930Qty per bike: 1
- 4 TUBE, DRAIN 11343-KVG-900Qty per bike: 1
- 5 RUBBER, STARTER MOTOR GEAR COVER 11344-GW3-980Qty per bike: 1
- 6 GASKET, LEFT CRANKCASE COVER 11395-KVY-901Qty per bike: 1
- 7 COLLAR 19416-KEY-900Qty per bike: 2
- 8 COVER, LEFT AIR TRAP 19741-K16-900Qty per bike: 1
- 9 PLATE, LEFT CRANKCASE COVER CLOSING 19742-K16-900Qty per bike: 1
- 10 SEAL 19748-K16-900Qty per bike: 1
- 11 SEAL, LEFT AIR TRAP COVER 19749-KVY-900Qty per bike: 1
- 12 CLIP, INNER LOCK, 32 mm 90601-KZL-930Qty per bike: 1
- 13 PIN, DOWEL, 8x12 90702-KFM-900Qty per bike: 2
- 14 BEARING, RADIAL BALL (6002UU) 91005-KVB-900Qty per bike: 1
- 15 OIL SEAL, 16x26x6 91211-PE9-003Qty per bike: 1
- 16 SCREW, TAPPING, 4x8 93903-34120Qty per bike: 5
- 17 SCREW, TAPPING, 4x12 93903-34310Qty per bike: 1
- 18 CLIP, TUBE (C12) 95002-80000Qty per bike: 1
- 19 BOLT, FLANGE, 6x18 96001-06018-00Qty per bike: 2
- 20 BOLT, FLANGE, 6x35 96001-06035-00Qty per bike: 13
- 21 BOLT, FLANGE, 6x85 96001-06085-00Qty per bike: 1
