SCOOPY i 2013 · E-15 LEFT CRANKCASE

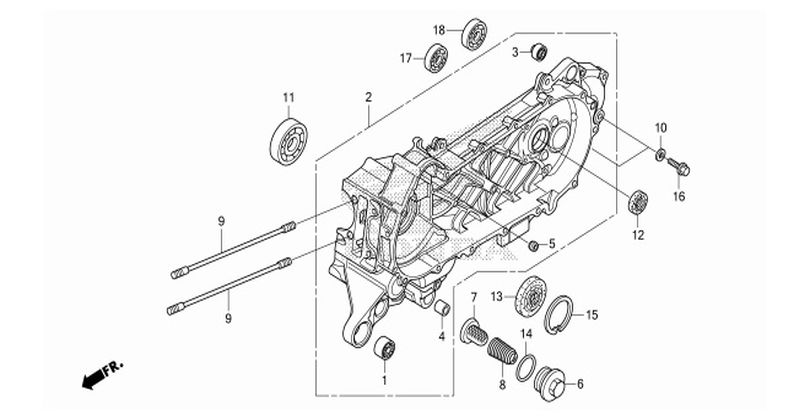

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-15
- 1 BUSH, ENGINE HANGER (HOKUSHIN) 11103-KVB-901Qty per bike: 1
- 1 BUSH, ENGINE MOUNTING 11103-KVB-930Qty per bike: 1
- 1 BUSH, ENGINE HANGER RUBBER 11216-GGC-900Qty per bike: 1
- 2 CRANKCASE SET, LEFT 11200-KZL-E00Qty per bike: 1
- 3 BUSH, REAR HANGER RUBBER 11203-GC7-300Qty per bike: 1
- 3 BUSH, REAR HANGER RUBBER (HOKUSHIN) 11203-KVB-901Qty per bike: 1
- 4 BUSH, MAIN STAND 11205-GBC-300Qty per bike: 1
- 5 BUSH, 8x12x6 11205-GW3-980Qty per bike: 1
- 6 CAP, OIL STRAINER 12361-035-000Qty per bike: 1
- 7 STRAINER, OIL FILTER 15421-107-000Qty per bike: 1
- 7 STRAINER, OIL FILTER 15421-KPL-900Qty per bike: 1
- 8 SPRING, OIL STRAINER 15426-KVB-900Qty per bike: 1
- 9 BOLT, STUD B, 7x198.5 90032-KVB-900Qty per bike: 2
- 10 WASHER, SEALING, 8 mm 90474-333-000Qty per bike: 2
- 11 BEARING, RADIAL BALL, 6007 91002-KVY-901Qty per bike: 1
- 12 OIL SEAL, 20x32x6 91202-KJ9-003Qty per bike: 1
- 13 OIL SEAL, 20.8x52x6x7.5 91202-KVB-901Qty per bike: 1
- 14 O-RING, 30.8 mm 91302-001-020Qty per bike: 1
- 15 CLIP, INNER LOCK, 52 mm 94520-52150Qty per bike: 1
- 16 BOLT, FLANGE, 8x12 95701-08012-00Qty per bike: 2
- 17 BEARING, RADIAL BALL, 6301 96100-63010-00Qty per bike: 1
- 18 BEARING, RADIAL BALL, 6302 96100-63020-00Qty per bike: 1
