SCOOPY i 2013 · E-17 THROTTLE BODY

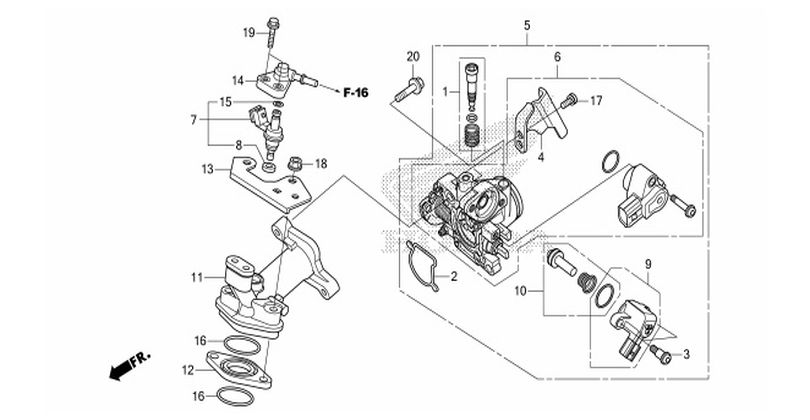

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-17
- 1 SCREW SET, IDLE AIR ADJUSTING 16016-KVB-S51Qty per bike: 1
- 2 O-RING, THROTTLE BODY 16075-KVB-S51Qty per bike: 1
- 3 SCREW, 5x8.7 16081-KPH-701Qty per bike: 2
- 5 SENSOR SET, SIGNAL/THROTTLE BODY (GQRMA A) 16400-KZL-C01Qty per bike: 1
- 6 THROTTLE BODY ASSY 16410-KZL-C01Qty per bike: 1
- 7 INJECTOR SET, FUEL 16450-KVB-S51Qty per bike: 1
- 8 SEAL, INJECTOR 16472-KPC-D50Qty per bike: 1
- 9 SOLENOID 16480-KVB-S51Qty per bike: 1
- 10 COMPONENT, THROTTLE BODY SET 16485-KVB-S51Qty per bike: 1
- 11 PIPE, INTAKE 17111-KZL-860Qty per bike: 1
- 12 INSULATOR, INTAKE PIPE 17119-GGC-900Qty per bike: 1
- 13 STAY, FUEL FEED PIPE 17120-K16-900Qty per bike: 1
- 14 COVER, INJECTOR 17560-KZL-930Qty per bike: 1
- 15 O-RING, 6.3x2.2 91301-GGL-J01Qty per bike: 1
- 16 O-RING, 25.5x1.9 91308-GFM-900Qty per bike: 2
- 17 SCREW, WASHER, 5x12 93892-05012-18Qty per bike: 1
- 18 NUT, FLANGE, 6 mm 94050-06000Qty per bike: 2
- 19 BOLT, FLANGE, 6x22 95701-06022-00Qty per bike: 2
- 20 BOLT, FLANGE, 6x20 96001-06020-00Qty per bike: 2
