SCOOPY i 2013 · E-13 EFR

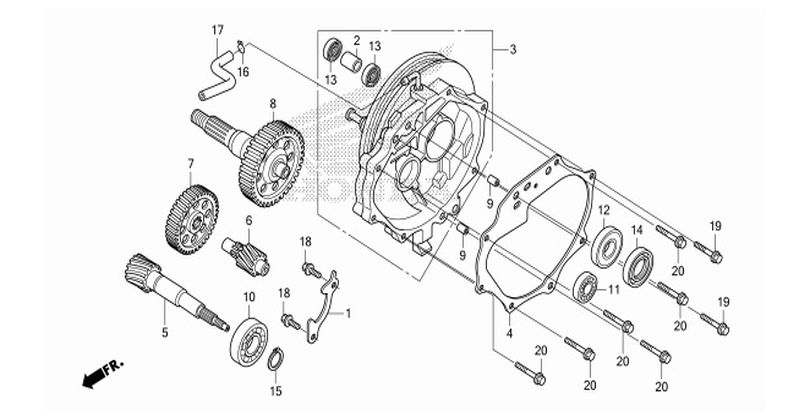

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-13
- 1 PLATE, BEARING LOCK 11108-KZL-930Qty per bike: 1
- 2 COLLAR, REAR BRAKE CAM 11204-KGF-900Qty per bike: 1
- 3 HOUSING, FINAL GEAR 21200-K16-900Qty per bike: 1
- 4 GASKET, FINAL GEAR CASE 21395-KVB-901Qty per bike: 1
- 5 SHAFT, DRIVE (18T) 23411-KZL-930Qty per bike: 1
- 6 SHAFT, DRIVEN (12T) 23421-KVB-900Qty per bike: 1
- 7 GEAR, IDLE (51T) 23422-KVG-900Qty per bike: 1
- 8 GEAR, FINAL (45T) 23430-KVB-900Qty per bike: 1
- 9 PIN, DOWEL, 8x12 90702-KFM-900Qty per bike: 2
- 10 BEARING, RADIAL BALL, 6204 (NTN) 91001-KE6-831Qty per bike: 1
- 11 BEARING, RADIAL BALL, 6201 (NTN) 91007-KVB-901Qty per bike: 1
- 11 BEARING, RADIAL BALL, 6201 (FUJIKOSHI) 91007-KVB-902Qty per bike: 1
- 12 BEARING, RADIAL BALL, 60/22 UU (KOYO) 91009-KVB-901Qty per bike: 1
- 12 BEARING, RADIAL BALL, 60/22 UU 91009-KZL-931Qty per bike: 1
- 13 OIL SEAL, 14x20x3.2 91201-434-003Qty per bike: 2
- 14 OIL SEAL, 29x44x7 (NOK) 91255-KVB-901Qty per bike: 1
- 14 OIL SEAL, 29x44x7 (ARAI) 91255-KVB-902Qty per bike: 1
- 15 CLIP, OUTER LOCK, 20 mm 94510-20000Qty per bike: 1
- 16 CLIP, TUBE (C9) 95002-50000Qty per bike: 1
- 17 TUBE, FINAL GEAR CASE BREATHER, 5x125 95005-50125-30Qty per bike: 1
- 18 BOLT, FLANGE, 6x14 95701-06014-00Qty per bike: 2
- 19 BOLT, FLANGE, 6x30 95701-06030-00Qty per bike: 2
- 20 BOLT, FLANGE, 6x40 95701-06040-00Qty per bike: 6
