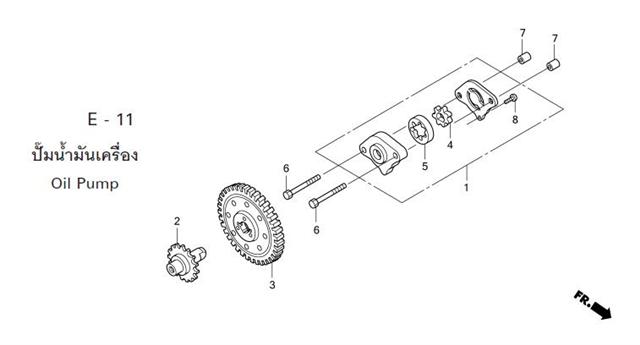

AIR BLADEi 2008 · E-11 OIL PUMP
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-11
- 1 OIL PUMP ASSY 15100-KVB-900Qty per bike: 1
- 2 SHAFT, OIL PUMP 15130-KVB-900Qty per bike: 1
- 3 GEAR, OIL PUMP DRIVE 15133-KVB-900Qty per bike: 1
- 4 ROTOR, INNER OIL PUMP 15331-KVB-900Qty per bike: 1
- 5 ROTOR, OUTER OIL PUMP 15332-KVB-900Qty per bike: 1
- 6 BOLT, HEX, 6x30 90002-GFC-900Qty per bike: 2
- 7 PIN, DOWEL, 8x12 90702-KFM-900Qty per bike: 2
- 8 SCREW, TAPPING, 4x8 93901-34120Qty per bike: 1
This catalogue is shared by: AIR BLADEi 2008, AIR BLADEi 2009. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
