AIR BLADEi 2008 · E-15 DRIVEN FACE

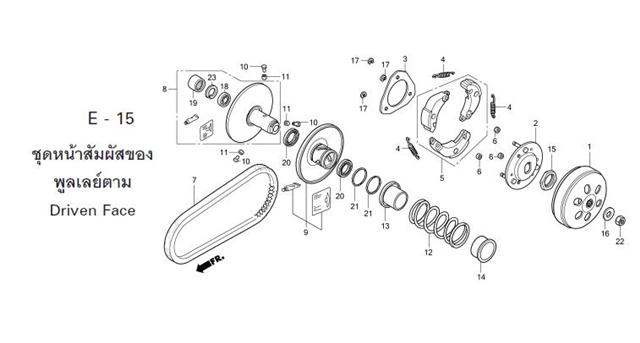

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-15
- 1 CLUTCH OUTER 22100-KVB-900Qty per bike: 1
- 2 PLATE, DRIVE 22350-KVB-900Qty per bike: 1
- 3 PLATE, BAFFLE 22361-KVB-900Qty per bike: 1
- 4 SPRING, CLUTCH SHOE 22401-KVB-900Qty per bike: 3
- 5 CENTRIFUGAL CLUTCH SET 22535-KVB-900Qty per bike: 1
- 6 RUBBER 22804-GB2-000Qty per bike: 3
- 7 BELT, DRIVE 23100-KVB-901Qty per bike: 1
- 8 DRIVE PLATE SET 23205-KVB-T00Qty per bike: 1
- 9 MOVABLE FACE, PULLEY 23224-KVB-900Qty per bike: 1
- 10 PIN, GUIDE ROLLER 23225-KSY-900Qty per bike: 3
- 11 ROLLER, GUIDE 23226-KVB-900Qty per bike: 3
- 12 SPRING, DRIVEN PULLEY FACE 23233-KVB-900Qty per bike: 1
- 13 COLLAR, SEAL 23237-GY6-940Qty per bike: 1
- 14 COLLAR, SPRING 23238-KVB-900Qty per bike: 1
- 15 NUT, SPECIAL, 28 mm 90202-KN7-670Qty per bike: 1
- 16 WASHER, 12.2x29x2.5 90441-GY6-940Qty per bike: 1
- 17 CLIP, LOCK, 7 mm 90605-166-720Qty per bike: 3
- 18 BEARING, RADIAL BALL, 6902U (NTN) 91002-GA7-701Qty per bike: 1
- 18 BEARING, RADIAL BALL, 6902U 91002-GA7-702Qty per bike: 1
- 18 BEARING, RADIAL BALL, 6902U (NSK) 91009-KVY-961Qty per bike: 1
- 19 BEARING, NEEDLE ROLLER, 20x29x18 91109-KVY-901Qty per bike: 1
- 20 OIL SEAL, 34x41x4 91211-KN7-671Qty per bike: 2
- 21 O-RING, 38.8x1.9 91384-KVB-900Qty per bike: 2
- 22 NUT, HEX, 12 mm 94030-12200Qty per bike: 1
- 23 CLIP, INNER LOCK, 28 mm 94520-28000Qty per bike: 1
