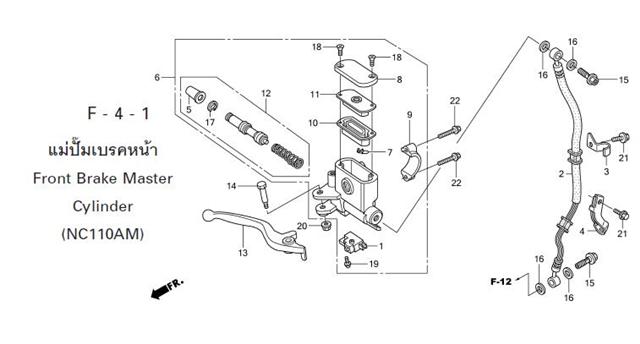

AIR BLADEi 2008 · F-4-1 (NCI IOAM)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-4-1
- 1 SWITCH SET, FRONT STOP LIGHT 35340-KGH-901Qty per bike: 1
- 2 HOSE, FRONT BRAKE 45126-KVG-A30Qty per bike: 1
- 3 HOLDER, BRAKE OIL HOSE 45156-KVG-A30Qty per bike: 1
- 4 HOLDER, BRAKE OIL HOSE B 45157-KVG-A30Qty per bike: 1
- 5 BOOT, DUST 45504-410-003Qty per bike: 1
- 6 MASTER CYLINDER SET, FRONT BRAKE 45510-KFL-D31Qty per bike: 1
- 7 PLATE, BAFFLE 45512-MA6-006Qty per bike: 1
- 8 CAP, FRONT BRAKE RESERVOIR 45513-GW0-911Qty per bike: 1
- 9 HOLDER, BRAKE MASTER CYLINDER 45517-GW0-751Qty per bike: 1
- 10 DIAPHRAGM 45520-GW0-911Qty per bike: 1
- 11 PLATE, DIAPHRAGM 45521-GW0-911Qty per bike: 1
- 12 PISTON SET, BRAKE MASTER CYLINDER 45530-471-831Qty per bike: 1
- 13 LEVER, BRAKE 53175-KVB-930Qty per bike: 1
- 14 BOLT, FRONT BRAKE LEVER PIVOT 90114-KGH-900Qty per bike: 1
- 15 BOLT, OIL (BRAKE), 10x22 (NISSIN) 90145-KPH-B30Qty per bike: 2
- 16 WASHER, SEALING 90545-300-000Qty per bike: 4
- 17 CLIP, LOCK 90651-MA5-671Qty per bike: 1
- 18 SCREW, 4x12 93600-04012-1GQty per bike: 2
- 19 SCREW, WASHER, 4x12 93893-04012-17Qty per bike: 1
- 20 NUT, FLANGE, 6 mm 94050-06000Qty per bike: 1
- 21 BOLT, FLANGE, 6x12 95701-06012-00Qty per bike: 2
- 22 BOLT, FLANGE, 6x22 95701-06022-00Qty per bike: 2
This catalogue is shared by: AIR BLADEi 2008, AIR BLADEi 2009. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
