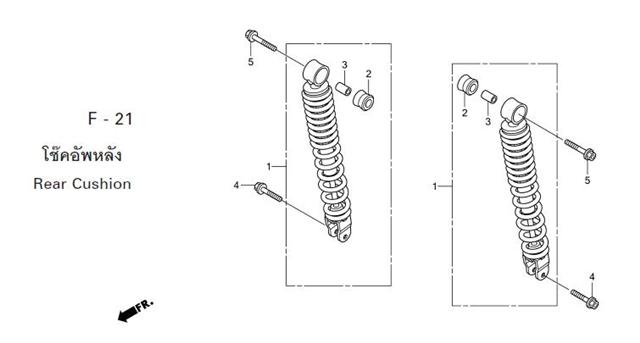

AIR BLADEi 2008 · F-21 REAR CUSHION
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-21
- 1 SHOCK ABSORBER, REAR 52400-KVG-901Qty per bike: 2
- 2 RUBBER BOOT, LOWER REAR SHOCK ABSORBER EYE 52485-KVG-901Qty per bike: 2
- 3 BUSH, LOWER SHOCK ABSORBER EYE RUBBER 52486-KVG-901Qty per bike: 2
- 4 BOLT, FLANGE, 8x32 95801-08032-00Qty per bike: 2
- 5 BOLT, FLANGE, 10x35 95801-10035-00Qty per bike: 2
This catalogue is shared by: AIR BLADEi 2008, AIR BLADEi 2009. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
