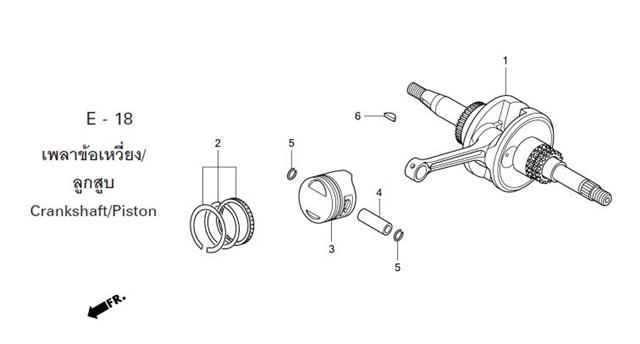

AIR BLADEi 2008 · E-18 CRANKSHAFT/PISTON
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-18
- 1 CRANK SET 13000-KVB-T00Qty per bike: 1
- 2 RING, PISTON 13011-KVB-T00Qty per bike: 1
- 2 RING, PISTON 13021-KVB-T00Qty per bike: 1
- 2 RING, PISTON 13031-KVB-T00Qty per bike: 1
- 2 PISTON RING 0.75 13041-KVB-T00Qty per bike: 1
- 2 RING, PISTON 13051-KVB-T00Qty per bike: 1
- 3 PISTON 13101-KVB-T00Qty per bike: 1
- 3 PISTON 0.25 13102-KVB-T00Qty per bike: 1
- 3 PISTON 0.50 13103-KVB-T00Qty per bike: 1
- 3 PISTON 0.75 13104-KVB-T00Qty per bike: 1
- 3 PISTON 1.00 13105-KVB-T00Qty per bike: 1
- 4 PIN, PISTON 13111-087-000Qty per bike: 1
- 5 CLIP, PISTON PIN, 13 mm 13115-GN5-910Qty per bike: 2
- 6 KEY, 4 mm 90741-003-010Qty per bike: 1
This catalogue is shared by: AIR BLADEi 2008, AIR BLADEi 2009. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
