AIR BLADEi 2008 · E-17 LEFT CRANKCASE

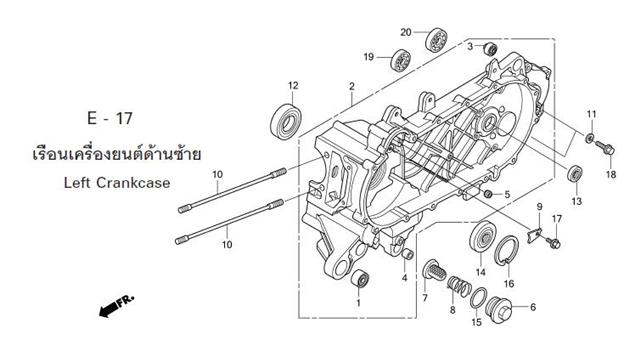

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-17
- 1 BUSH, ENGINE HANGER (HOKUSHIN) 11103-KVB-901Qty per bike: 1
- 2 CRANKCASE, LEFT 11200-KVB-T00Qty per bike: 1
- 3 BUSH, REAR HANGER RUBBER (HOKUSHIN) 11203-KVB-901Qty per bike: 1
- 4 BUSH, MAIN STAND 11205-GBC-300Qty per bike: 1
- 5 BUSH, 8x12x6 11205-GW3-980Qty per bike: 1
- 6 CAP, OIL STRAINER 12361-035-000Qty per bike: 1
- 7 STRAINER, OIL FILTER 15421-107-000Qty per bike: 1
- 8 SPRING, OIL STRAINER 15426-KVB-900Qty per bike: 1
- 9 PLATE, LOCK 23531-MG2-790Qty per bike: 1
- 10 BOLT, STUD B, 7x198.5 90032-KVB-900Qty per bike: 2
- 12 BEARING, RADIAL BALL, SPECIAL 6207 91002-KCW-851Qty per bike: 1
- 12 BEARING, RADIAL BALL 91002-KVB-901Qty per bike: 1
- 13 OIL SEAL, 20x32x6 91202-KJ9-003Qty per bike: 1
- 14 OIL SEAL, 20.8x52x6x7.5 91202-KVB-901Qty per bike: 1
- 15 O-RING, 30.8 mm 91302-001-020Qty per bike: 1
- 16 CLIP, INNER LOCK, 52 mm 94520-52150Qty per bike: 1
- 17 BOLT, FLANGE, 6x14 95701-06014-00Qty per bike: 2
- 18 BOLT, FLANGE, 8x12 95701-08012-00Qty per bike: 1
- 19 BEARING, RADIAL BALL, 6301 96100-63010-00Qty per bike: 1
