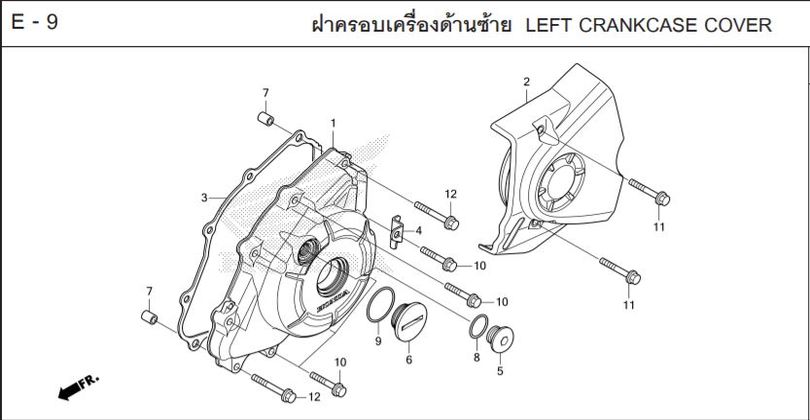

CBR150R 2021 · E-9 LEFT CRANKCASE COVER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-9
- 1 COVER, LEFT CRANKCASE 11341-K56-N00Qty per bike: 1
- 2 COVER, FRONT SPROCKET 11360-K15-920Qty per bike: 1
- 3 GASKET, LEFT CRANKCASE COVER 11395-K56-V50Qty per bike: 1
- 4 GUIDE, GEAR POSITION SWITCH WIRE 32123-K56-N00Qty per bike: 1
- 5 CAP, TIMING HOLE, 14 mm 90084-K03-N30Qty per bike: 1
- 6 CAP, CRANKSHAFT HOLE, 30 mm 90087-KGH-900Qty per bike: 1
- 7 PIN, DOWEL, 8x12 90702-KFM-900Qty per bike: 2
- 8 O-RING, 13.8x2.4 91323-K56-N00Qty per bike: 1
- 9 O-RING, 30 mm 91356-KWV-000Qty per bike: 1
- 10 BOLT, FLANGE, 6x30 96001-06030-00Qty per bike: 7
- 11 BOLT, FLANGE, 6x35 96001-06035-00Qty per bike: 2
- 12 BOLT, FLANGE, 6x40 96001-06040-00Qty per bike: 2
