CBR150R 2021 · F-14 FUEL TANK

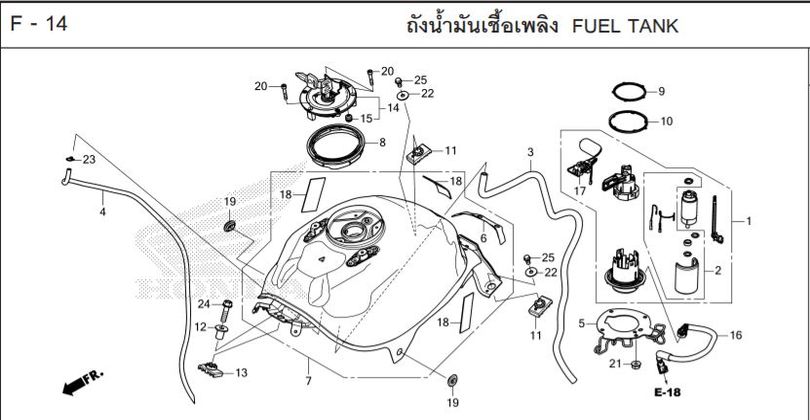

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-14
- 1 FUEL PUMP SET 16700-K45-NL1Qty per bike: 1
- 2 FUEL FILTER SET 16707-K45-N01Qty per bike: 1
- 3 TUBE, FUEL DRAIN 17525-K45-N40Qty per bike: 1
- 4 TUBE, FUEL TANK BREATHER 17526-K45-N40Qty per bike: 1
- 5 PLATE, FUEL PUMP MOUNTING 17527-K15-920Qty per bike: 1
- 6 FILM, FUEL TANK PROTECTION 17527-K45-NL0Qty per bike: 1
- 7 FUEL TANK SET 17530-K45-NL0Qty per bike: 1
- 8 SEAL, FUEL TANK 17545-K45-NL0Qty per bike: 1
- 9 GASKET, FUEL PUMP 17572-GHB-613Qty per bike: 1
- 10 SEAL, DUST 17573-KPN-A71Qty per bike: 1
- 11 RUBBER, FUEL TANK (C) 17613-K45-N00Qty per bike: 2
- 12 COLLAR, FUEL TANK 17614-K45-N00Qty per bike: 1
- 13 RUBBER, FUEL TANK (A) 17615-K45-N00Qty per bike: 1
- 14 CAP, FUEL FILLER 17620-KRE-G02Qty per bike: 1
- 15 SEAL, BREATHER 17621-KRE-G02Qty per bike: 1
- 16 PIPE SET, FUEL FEED 17650-K45-TA1Qty per bike: 1
- 17 FUEL LEVEL SENSOR SET (FLOAT) 37800-K45-NL1Qty per bike: 1
- 18 RUBBER, FUEL TANK 81257-K26-B00Qty per bike: 3
- 19 RUBBER, FUEL TANK 83551-300-000Qty per bike: 2
- 20 BOLT, 4x24 90110-MGP-D60Qty per bike: 3
- 21 NUT, FLANGE, 6 mm 94050-06000Qty per bike: 4
- 22 WASHER, 6 mm 94103-06800Qty per bike: 2
- 23 CLIP, TUBE (B8) 95002-02080Qty per bike: 1
- 24 BOLT, FLANGE, 8x30 95701-08030-00Qty per bike: 1
- 25 BOLT, FLANGE, 6x12 96001-06012-00Qty per bike: 2
