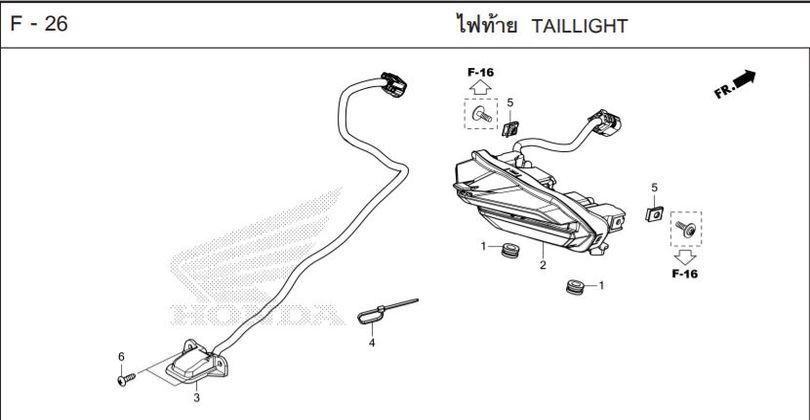

CBR150R 2021 · F-26 TAILLIGHT
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-26
- 1 RUBBER 19639-GBC-000Qty per bike: 2
- 2 TAILLIGHT AND STOP LIGHT SET 33701-K64-JC1Qty per bike: 1
- 3 LICENSE LIGHT SET 33720-K45-N41Qty per bike: 1
- 4 BAND, WIRE, 95 mm 90650-KV6-003Qty per bike: 1
- 5 NUT, CLIP, 5 mm 90677-KAN-T00Qty per bike: 2
- 6 SCREW, TAPPING, 4x16 93903-24480Qty per bike: 2
