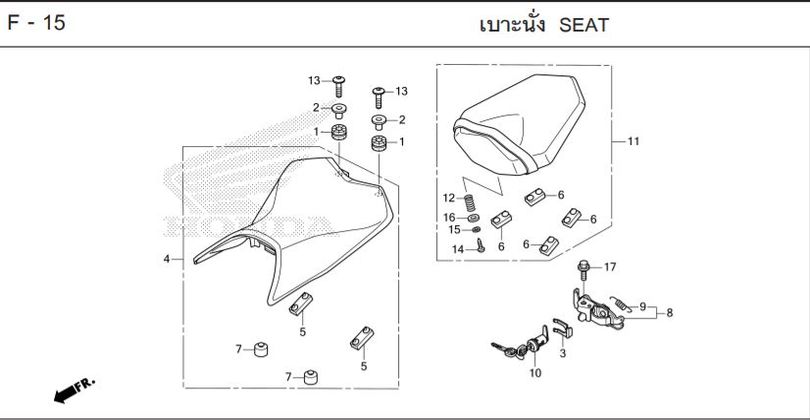

CBR150R 2021 · F-15 SEAT
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-15
- 1 RUBBER A 33705-KW7-900Qty per bike: 2
- 2 COLLAR (WHITE) (FOR REAR) 61104-428-010Qty per bike: 2
- 3 SPRING, SEAT LOCK KEY 75581-KY4-900Qty per bike: 1
- 4 SEAT ASSY, FRONT (ALL COLORS) 77100-K45-NL0ZAQty per bike: 1
- 5 RUBBER, SEAT 77205-K45-N00Qty per bike: 2
- 6 RUBBER, SEAT 77205-KPP-T00Qty per bike: 4
- 7 RUBBER, SEAT DAMPER 77206-KPP-T00Qty per bike: 2
- 8 SEAT LOCK SET 77220-K45-N40Qty per bike: 1
- 9 SPRING, SEAT LOCK 77234-GGZ-J00Qty per bike: 1
- 10 KEY SET, SEAT LOCK 77239-K45-N41Qty per bike: 1
- 11 SEAT ASSY, REAR (ALL COLORS) 77300-K45-NL0ZAQty per bike: 1
- 12 SPRING, SEAT LOCK 77302-MEE-000Qty per bike: 1
- 13 BOLT, SPECIAL, 6x22 90109-K84-900Qty per bike: 2
- 15 WASHER, 4 mm 94101-04800Qty per bike: 1
- 16 WASHER, 8 mm 94102-08800Qty per bike: 1
- 17 BOLT, FLANGE, 6x10 95701-06010-00Qty per bike: 1
