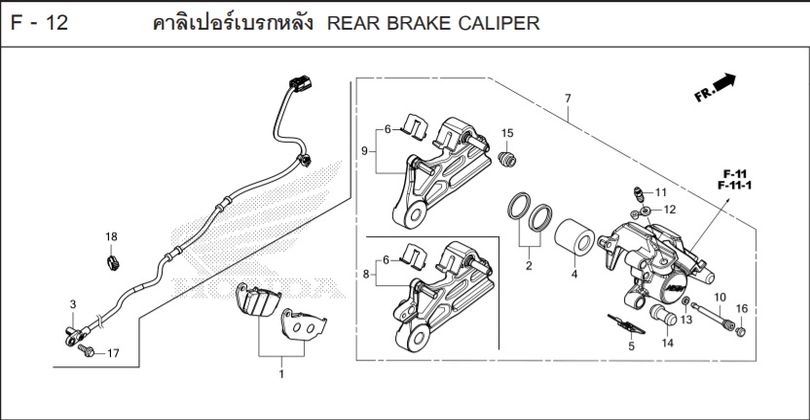

CBR150R 2021 · F-12 REAR BRAKE CALIPER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-12
- 1 SHOE/PAD SET, REAR BRAKE 06435-KRE-G32Qty per bike: 1
- 2 CALIPER PISTON SEAL SET 06451-MA7-405Qty per bike: 1
- 3 SENSOR, REAR WHEEL SPEED 38510-K45-NB1Qty per bike: 1
- 4 PISTON, CALIPER 43107-MA7-006Qty per bike: 1
- 5 SPRING, BRAKE PAD 43108-KSP-B51Qty per bike: 1
- 6 SPRING, BRAKE PAD 43112-KSP-B01Qty per bike: 1
- 7 CALIPER SET, REAR BRAKE 43150-K45-ND1Qty per bike: 1
- 7 CALIPER SET, REAR BRAKE 43150-KSP-B02Qty per bike: 1
- 8 CALIPER BRACKET SET, REAR BRAKE 43190-K45-NB1Qty per bike: 1
- 9 CALIPER BRACKET SET, REAR BRAKE 43190-KSP-B01Qty per bike: 1
- 10 PIN, BRAKE PAD 43215-KGH-901Qty per bike: 1
- 11 SCREW, AIR BLEED (NISSIN) 43352-568-003Qty per bike: 1
- 12 CAP, AIR BLEED SCREW 43353-461-771Qty per bike: 1
- 13 WASHER, LOCK 45111-MAJ-G41Qty per bike: 1
- 14 BUSH, BRAKE PAD PIN RUBBER (NISSIN) 45132-166-016Qty per bike: 1
- 15 BOOT, DUST B 45133-MA3-006Qty per bike: 1
- 16 CAP, BRAKE PAD PIN 45203-MCC-006Qty per bike: 1
- 17 BOLT, FLANGE, 6x14 90117-KZZ-J80Qty per bike: 1
- 18 CLIP, CABLE, 14 mm 90690-MCA-003Qty per bike: 1
