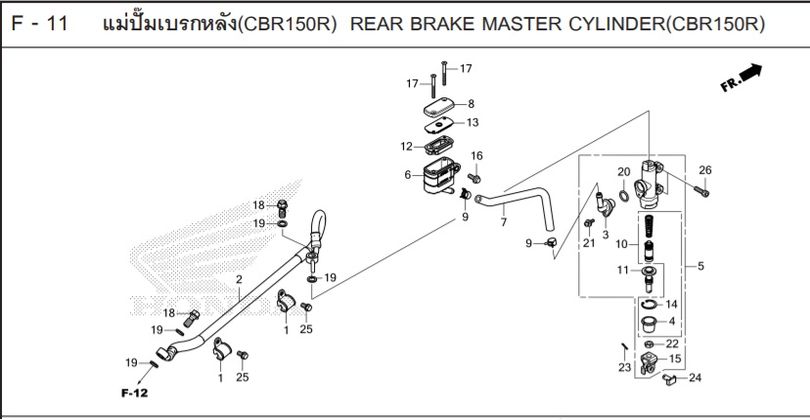

CBR150R 2021 · F-11 REAR BRAKE MASTER CYLINDER(CBR150R)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-11
- 1 CLAMP, REAR BRAKE HOSE 43155-K15-900Qty per bike: 2
- 2 HOSE, REAR BRAKE 43310-K45-N41Qty per bike: 1
- 3 JOINT 43503-MR7-006Qty per bike: 1
- 4 BOOT, DUST 43504-MB2-006Qty per bike: 1
- 5 MASTER CYLINDER SET, REAR BRAKE 43510-K45-N01Qty per bike: 1
- 6 RESERVOIR, REAR BRAKE 43511-K43-D31Qty per bike: 1
- 7 HOSE, REAR BRAKE MASTER CYLINDER 43512-K45-NA1Qty per bike: 1
- 8 CAP, FRONT BRAKE RESERVOIR 43513-KBP-881Qty per bike: 1
- 9 BAND, REAR BRAKE MASTER CYLINDER HOSE 43514-KS6-701Qty per bike: 2
- 10 PISTON SET, REAR BRAKE MASTER CYLINDER 43520-MJ6-315Qty per bike: 1
- 11 ROD, REAR BRAKE MASTER CYLINDER 43530-KV3-701Qty per bike: 1
- 12 DIAPHRAGM 45520-GW0-911Qty per bike: 1
- 13 PLATE, DIAPHRAGM 45521-GW0-911Qty per bike: 1
- 14 CLIP, LOCK 46182-MEL-D21Qty per bike: 1
- 15 JOINT, BRAKE MASTER CYLINDER ROD 46504-KV6-702Qty per bike: 1
- 16 BOLT, FLANGE, 6x14 90005-MGZ-J00Qty per bike: 1
- 17 SCREW, 4x50 90140-K43-D31Qty per bike: 2
- 18 BOLT, OIL (BRAKE), 10x22 90145-GAZ-981Qty per bike: 2
- 19 WASHER, SEALING 90545-300-000Qty per bike: 4
- 20 O-RING, 14.8x2.4 91212-422-006Qty per bike: 1
- 21 SCREW, WASHER, 4x12 93893-04012-17Qty per bike: 1
- 22 NUT, HEX, 8 mm 94002-08000-0SQty per bike: 1
- 23 PIN, COTTER, 2.0x15 94201-20150Qty per bike: 1
- 24 PIN D, BRAKE MASTER CYLINDER JOINT 95015-54000Qty per bike: 1
- 25 BOLT, FLANGE, 6x10 96001-06010-00Qty per bike: 2
- 26 BOLT, 6x20 96600-06020-08Qty per bike: 2
